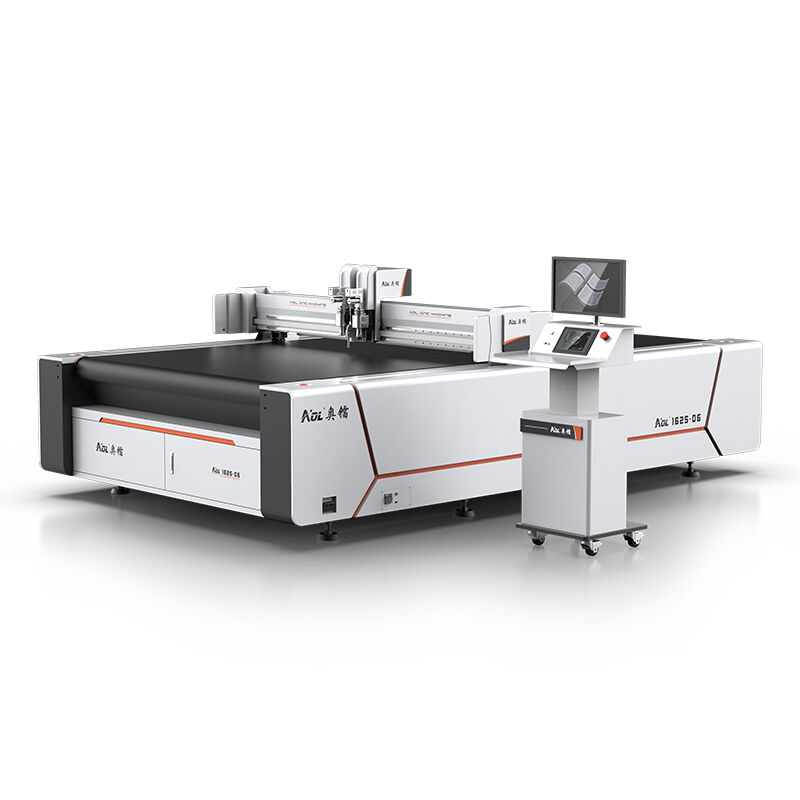

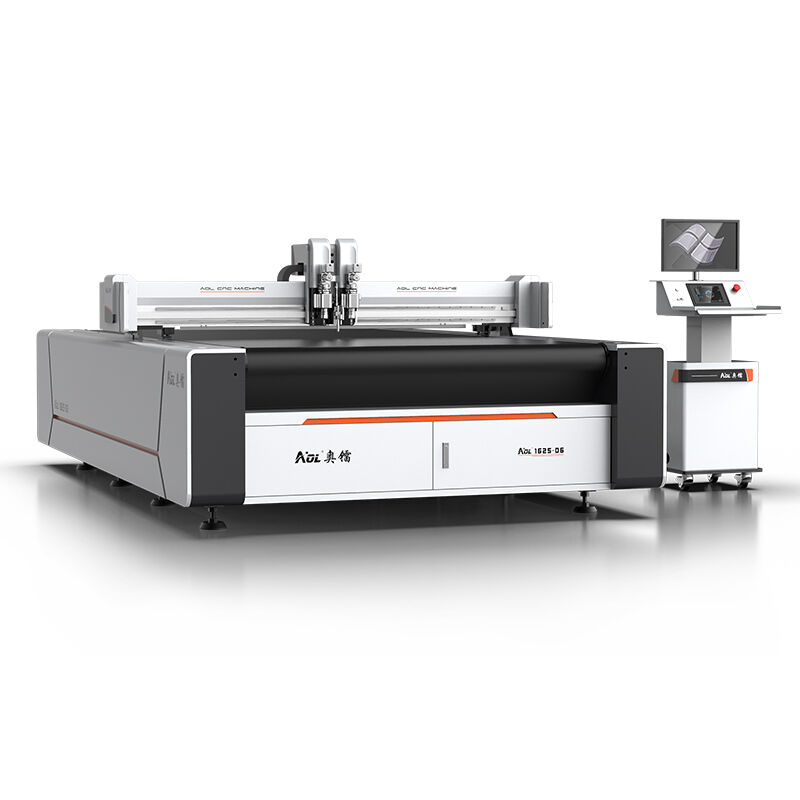

1625-E8

The E8 high-speed CNC cutting machine is a high-performance digital cutting device designed for high-volume manufacturing and high-precision process requirements. The machine utilizes a high-speed servo drive system, lightweight tool structure, and optimized motion control algorithms.

- High-rigidity machine body with imported linear guides for stable, high-speed precision cutting

- Multi-functional tool system for foam, leather, fabric, cardboard, composites, and automotive interiors

- Smooth, burr-free cutting quality even at high operating speeds

- High-speed, high-precision, high-efficiency digital cutting performance for industrial use

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Model	AOL1625 auto loading and unloading system (Accept customization)
Working Area	1600 × 2500mm
Dimensions	3700mm × 2300mm × 1350mm
Cutting Speed	2500mm/s
Positioning Accuracy	±0.01mm
Power	12KW
Zone Adsorption	16 zones
Voltage	220V / 50Hz, 380V / 60Hz
Weight	1200KG
Safety Device	Infrared Sensor
Supported File Formats	AI, PLT, DXF, CDR, etc.
Operating Sound	65 dBA
Drive System	Servo Motor
Optional Features	Industrial Camera Positioning System, Various Cutting Tool Options
Cutting Materials	KT Board, Self-adhesive Board, PVC Board, ABS Board, Slide Film, Printed Fabric, etc.

Core Functions

Infrared Safety Device

The infrared sensor safety device ensures the safety of the operator during high-speed machine operation and prevents the loss of cutting materials.

Honeycomb Countertop

The sturdy aluminum honeycomb platform provides excellent suction and ensures the platform remains flat and does not deform even after prolonged use.

Superior Layout Software

Superior layout software, increasing material utilization by over 10%.

Automatic Feeding Device

The highly efficient anti-curling feeding system completes feeding and cutting within 5 seconds, enabling the machine to perform automatic continuous cutting.

Characteristic

High-Strength Integrated Frame : Utilizing a 12mm steel frame and advanced connection technology, the machine frame weighs 600KG, offering 30% increased strength and ensuring reliability and durability.
Improved Internal Operation : New vacuum design. Airflow is increased by 25%, and the gantry frame features built-in diagonal bracing, increasing structural strength by 30%.
Intelligent vacuum zoning allows for intelligent adjustment of suction power based on material size. Millions of bending tests. The entire machine's cables have undergone millions of bending and fatigue tests, resulting in longer service life and enhanced safety.

Upgraded Circuit Layout:A newly upgraded circuit layout makes operation more convenient.
Various Material Loading Devices : Select the appropriate loading device based on the material.
Noise Reduction System : Using AOL's latest system creates a comfortable working environment; noise levels are approximately 65dB in energy-saving mode.
