Customized Equipment-42100CT

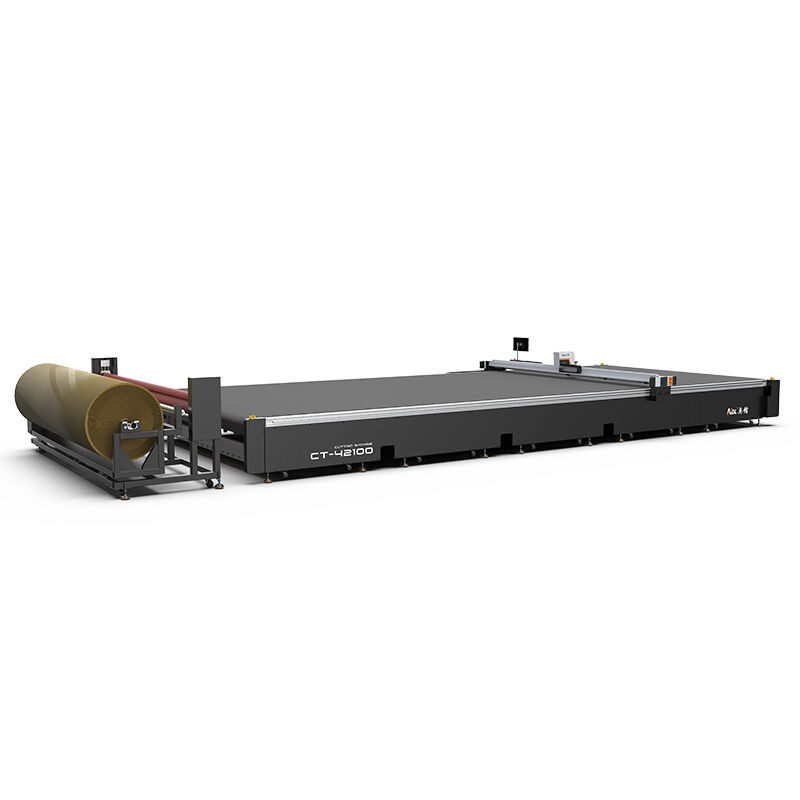

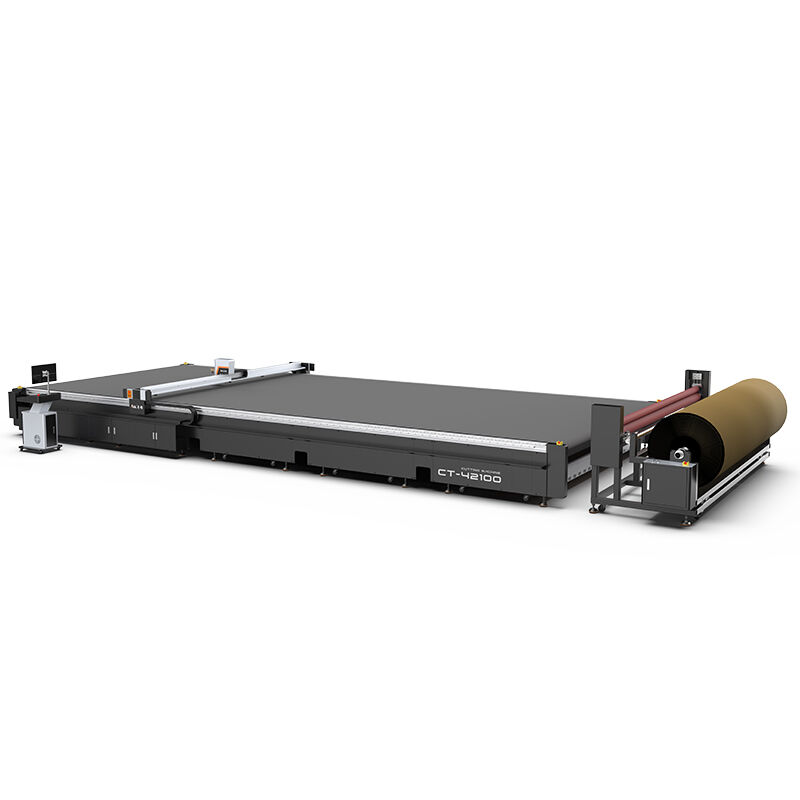

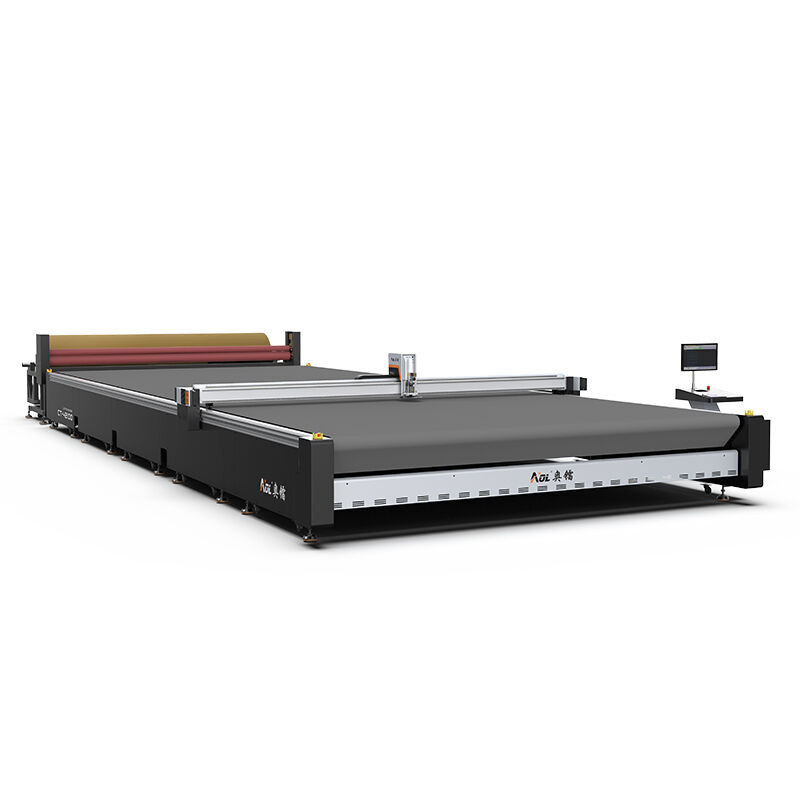

Customized 42100CT CNC cutting machine is an intelligent digital cutting device designed for processing ultra-large format flexible materials.

- Industrial-grade CNC cutting system for ultra-long & ultra-wide materials

- Supports one-time large-format cutting with high precision

- Intelligent vision positioning automatically detects edges and markers

- Automatic nesting improves material utilization and reduces waste

- Enables high-efficiency, low-cost, digital production upgrading

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	4900mm × 13000mm × 1500mm
Working Range	4200mm × 10000mm
Vacuum pump power	12.5KW × 3
Rated Power	30KW
Weight	5000KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	200–1500mm/s (depending on material density.)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Imported servo motors, imported linear guides, and ground gears and racks.
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Milling, Drawing tools, etc.
Cutting material	PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	48 partitions

Core Functions

Automatic Feeding Device

The highly efficient anti-curling feeding system completes feeding and cutting within 5 seconds, enabling the machine to perform automatic continuous cutting.

Infrared Safety Device

The infrared sensor safety device ensures the safety of the operator during high-speed machine operation and prevents the loss of cutting materials.

Honeycomb Countertop

The sturdy aluminum honeycomb platform provides excellent suction and ensures the platform remains flat and does not deform even after prolonged use.

Vacuum Adsorption

Powerful airflow and strong suction, with adjustable vacuum suction area size, significantly reducing power consumption.

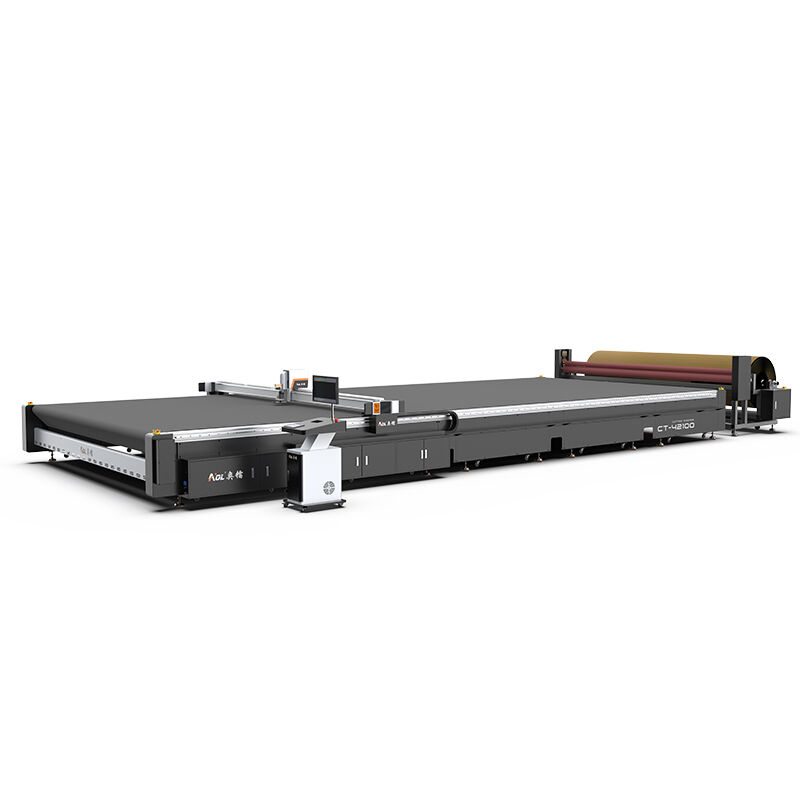

Characteristic

Processing Extra-Large and Extra-Wide Materials:Customized large-size specifications enable the machine to process extra-large sheets, long rolls, and wide industrial materials without manual cutting, thus improving workflow continuity and reducing secondary handling.
Increased Efficiency in Mass Production:A larger work area allows for nesting and cutting more parts in a single cycle, significantly increasing throughput. This is particularly beneficial for industries such as furniture manufacturing, automotive interiors, packaging, composites, and insulation.
Reduced Material Handling and Increased Efficiency:The extra-large worktable minimizes the need for multiple material repositionings, reducing labor intensity, setup time, and the risk of alignment errors. This helps to speed up production and improve consistency.
Enhanced Flexibility for Complex and Long Designs:The extended cutting space supports long products such as carpets, curtains, mattress foam blocks, billboards, carbon fiber sheets, and aircraft interior materials, providing flexibility unavailable with standard-sized machines.
Tailor-made for Specific Industrial Needs:This machine tool can be customized to meet the unique needs of a factory, including custom length, width, tool configuration, conveyor system, material feeding scheme, and safety features, ensuring optimal performance in specialized applications.

Enhanced Structural Stability for Large-Scale Operations:The customized large-scale CNC machine tool features a reinforced frame, heavy-duty gantry, and high-load motion system to maintain stability and precision over large-area cutting areas, ensuring long-term reliability.
Intelligent Nesting for Improved Material Utilization:The expanded workspace, combined with advanced nesting software, enables more efficient pattern layout, reducing waste and lowering material costs for large-format manufacturing.
Seamless Integration with Automated Production Lines:The large machine tool can be integrated with automated feeding and unloading systems.
Multi-Tool and Multi-Process Cutting Capabilities:Despite its large size, this machine supports various processing methods such as oscillating cutter, drag cutter, V-cut, half-cut, indentation, punching, milling, and camera recognition, enabling diverse processing on a single machine.
Suitable for high-volume, long-shift, and batch production:With higher capacity and less downtime, this system is ideal for continuous 24/7 operation and is the perfect choice for factories requiring high output and consistent quality.

Related Cutting Tools

Electric Oscillating Tool

Pneumatic Knife Tool

Driven Rotary Knife Tool

Large Format Digital Camera

Marking Pen

CCD Camera

Leveling Tool

Product Video

Cutting Case

Clear Table Protector Cutting

Coiled Wire Floor Mat Cutting

EVA Mat Cutting

Irregular Shaped Rugs Cutting

Printed Carpet Cutting

Rubber Mat Cutting

Wool Carpet Cutting

Wool Rugs Cutting

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
