LC8-3235

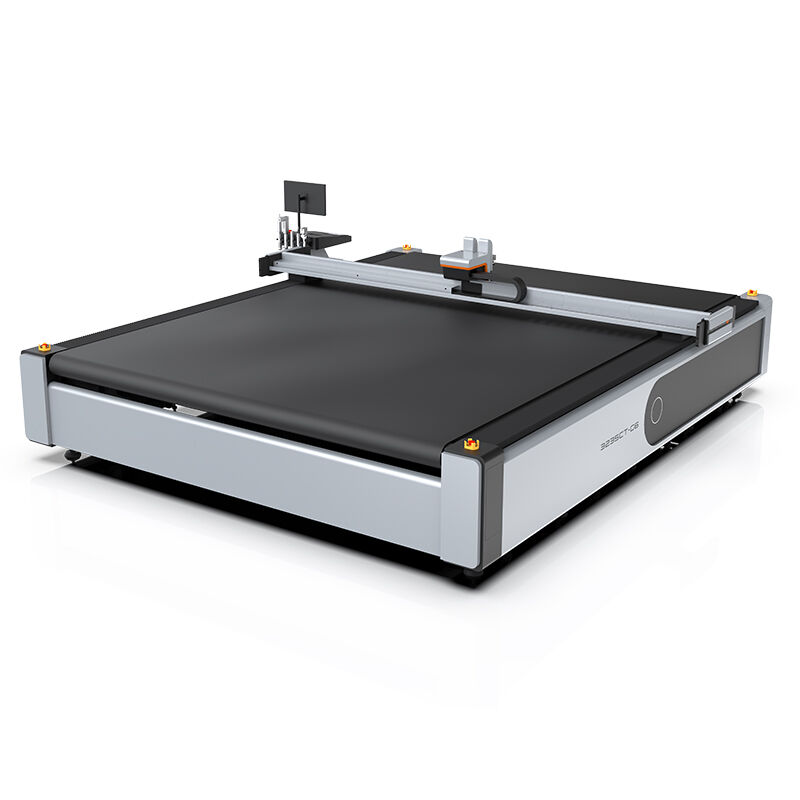

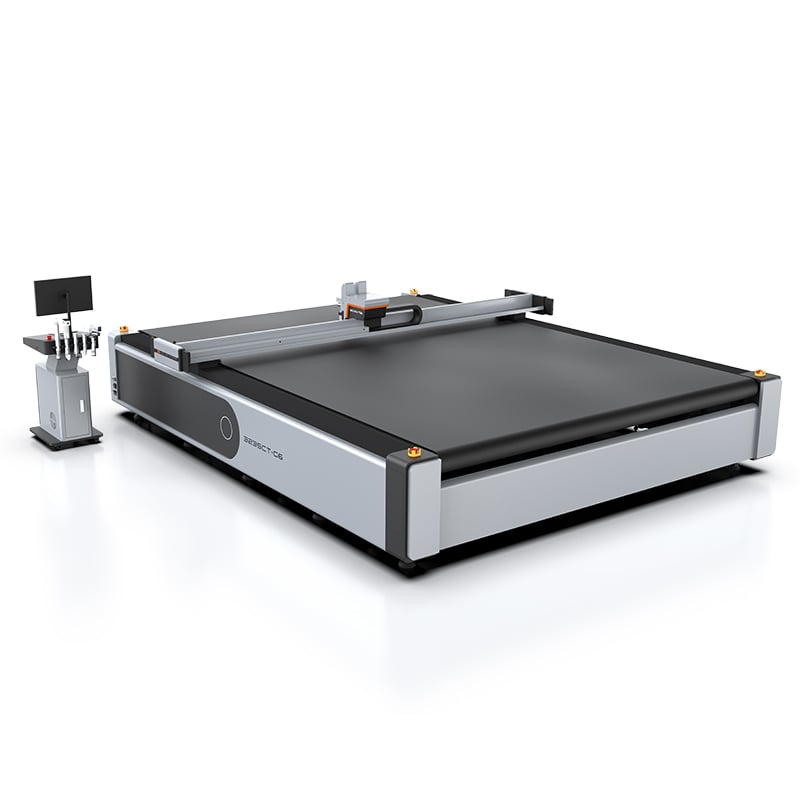

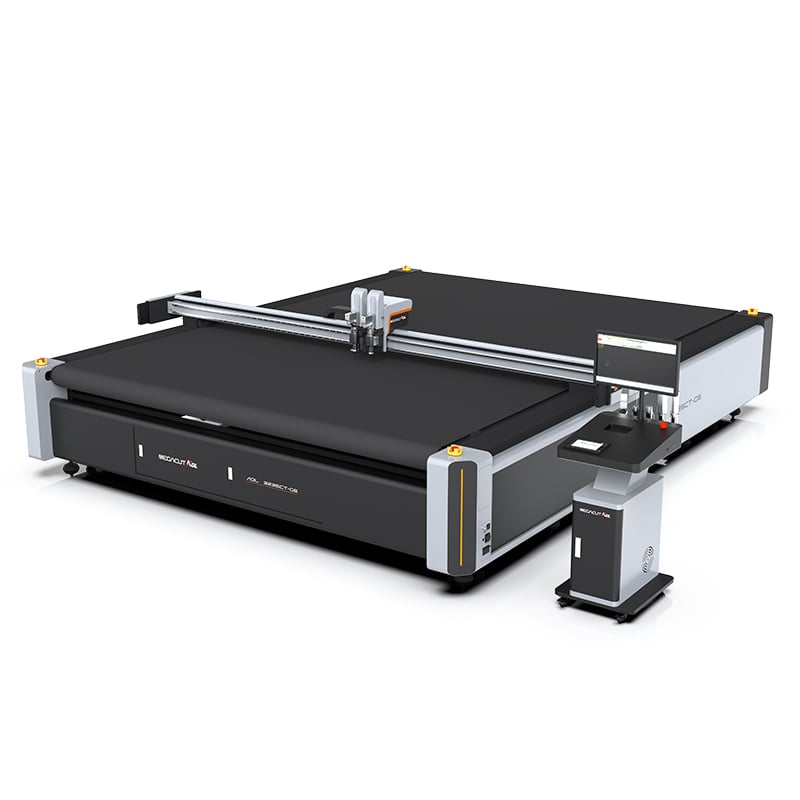

The LC8 3235 CNC Cutting Machine is a large-format digital cutting system engineered for high-precision, high-speed processing of textiles, foam, leather, composites, and packaging materials.

- Reinforced steel frame & servo drive ensure stable, high-precision cutting

- Vacuum adsorption table keeps materials firmly fixed for accurate results

- Supports auto feeding, conveyor cutting & vision positioning

- Intelligent nesting software reduces waste and boosts efficiency

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	4188mm × 4500mm × 1350mm
Working Range	3200mm × 3500mm
Vacuum pump power	12.5KW
Rated Power	16KW
Weight	2500KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	90m/min (depending on material density.)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Servo motor, imported linear guide, ground gear rack
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Drawing tools, etc.
Drive system	Imported servo motor, linear guide, synchronous belt, screw
Cutting material	Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	24 partitions

Core Functions

Automatic Graphic Positioning

It enables automatic positioning and cutting of various materials, allowing for fast and precise cutting of various complex and irregularly shaped patterns.

AOL Cutting Design Software

This powerful CAD editing and design software supports barcode reading, preventing operators from sending incorrect cutting files and improving work efficiency.

Automatic Feeding Device

The highly efficient anti-curling feeding system completes feeding and cutting within 5 seconds, enabling the machine to perform automatic continuous cutting.

Multiple Cutting Tools

One machine can be equipped with multiple cutting tools, enabling multi-purpose use and meeting the diverse cutting needs of different materials.

Characteristic

Intelligent Cutting Production Line: The entire process—from leather contour scanning and grading to cutting—is completed continuously on a single machine, minimizing manual operation and reducing reliance on specialized personnel.
Continuous Processing, Saving Time: Dual-zone bidirectional conveyor for scanning and cutting. Rear scanning and layout work simultaneously with front cutting and feeding.
Cutting, punching, and marking are integrated into one process, reducing production steps and enabling faster order delivery.

Vacuum Adsorption System: 48 vacuum zones with tracking adsorption effectively ensure material flatness and improve cutting accuracy.
Automatic Obstacle Detection Function: Automatically stops cutting when obstacles are detected in the cutting area, ensuring human and machine safety.
Dual-Screen Display: Expandable computer screen allows for split-screen display of layout and cutting progress, reducing switching frequency and improving operational efficiency.
