LC8-DSJ

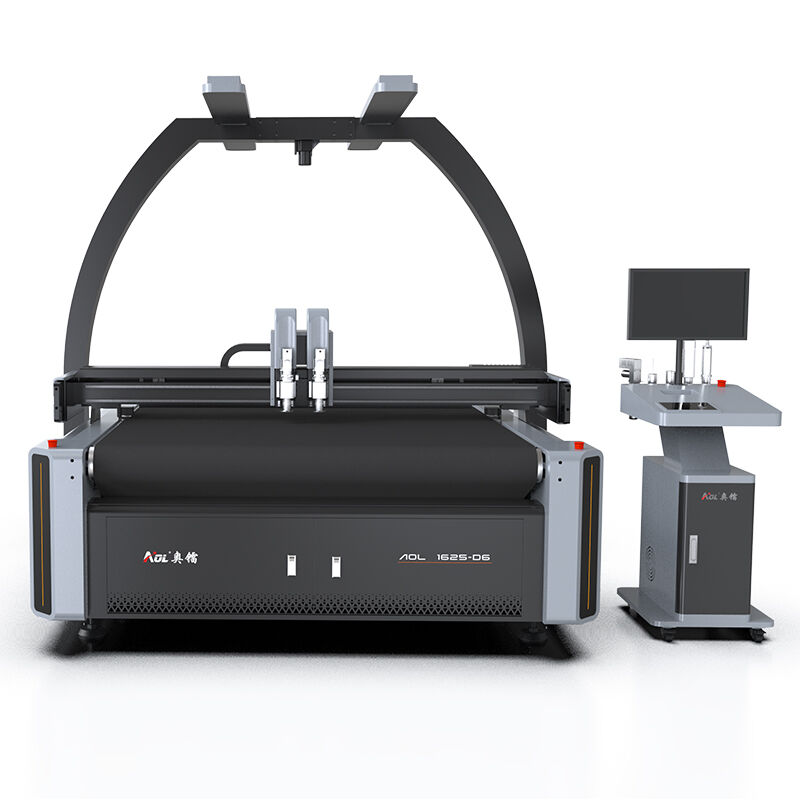

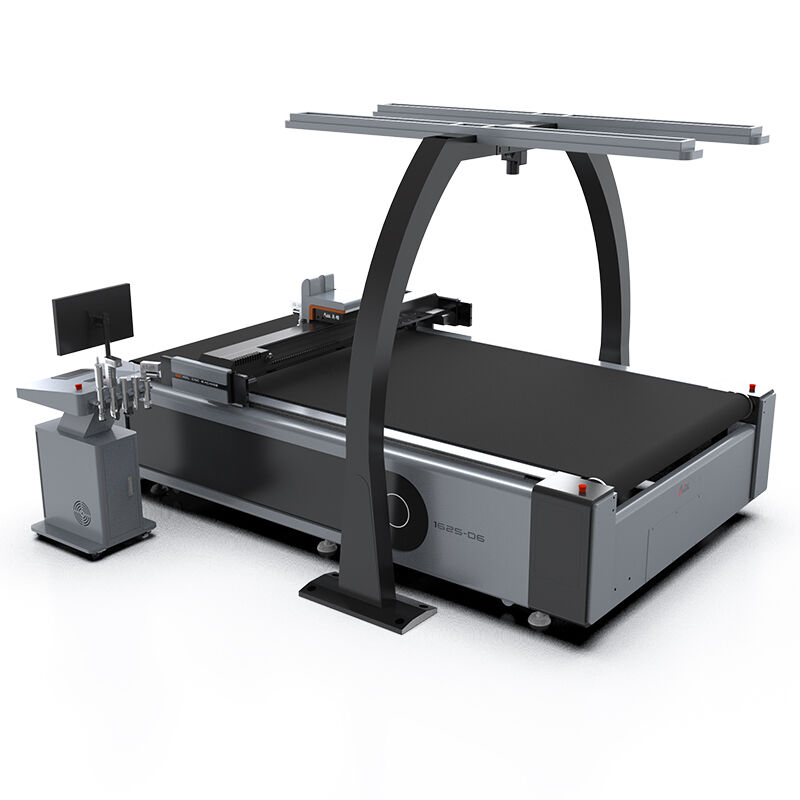

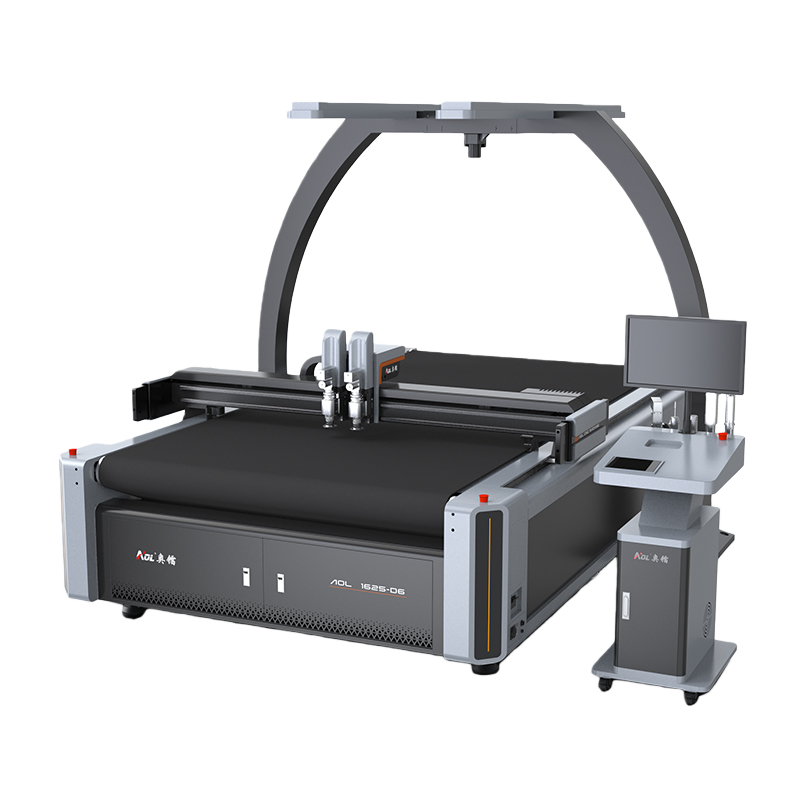

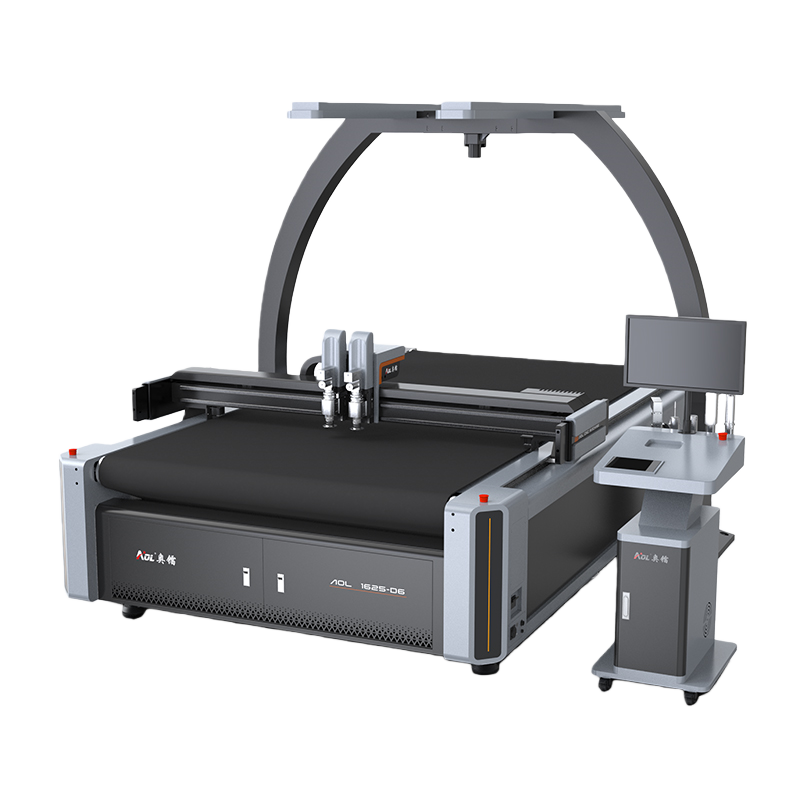

The LC8-DSJ visual CNC oscillating knife cutting machine is a large-format digital cutting solution designed for high-precision industrial applications. Combining advanced vision recognition technology with high-performance CNC cutting, it enables accurate scanning, positioning, and cutting of complex patterns and large-size materials.

·Advanced visual recognition system with high-definition industrial camera for automatic scanning and positioning

·High-precision deviation correction ensures accurate cutting of large-format materials and complex graphics

·High-performance CNC oscillating knife cutting supports both precision cutting and mass production

·Wide material compatibility including fabrics, leather, rubber, composites, and electronic films

·Optimized for complex pattern processing, delivering consistent cutting accuracy and production efficiency

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	3560mm2350mm1221mm
Working Range	1600mm*2500mm
Vacuum pump power	9KW
Rated Power	11KW
Weight	1240KG
Safety Device	Four corners emergency stop, anti-collision safety device using infrared induction, safe and reliable
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	200-2000mm/s (depending on material density.)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Servo motor, imported linear guide, ground gear rack
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Punching, etc
Drive system	Imported servo motor, linear guid, synchronous belt, screw
Cutting material	Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Ethernet port
Material fixed way	Tracking Adsorption
Adsorption partitions	16 partitions

Core Functions

Superior Layout Software

Intelligent Recognition Technology

Effectively identify leather defects, increase production, reduce waste, and improve the efficient utilization of materials.

Automatic Fault Alarm System

By monitoring equipment operating status in real time, problems can be detected in advance and operators can be promptly notified to address them, preventing minor malfunctions from escalating into major shutdowns.

Vacuum Adsorption

Powerful airflow and strong suction, with adjustable vacuum suction area size, significantly reducing power consumption.

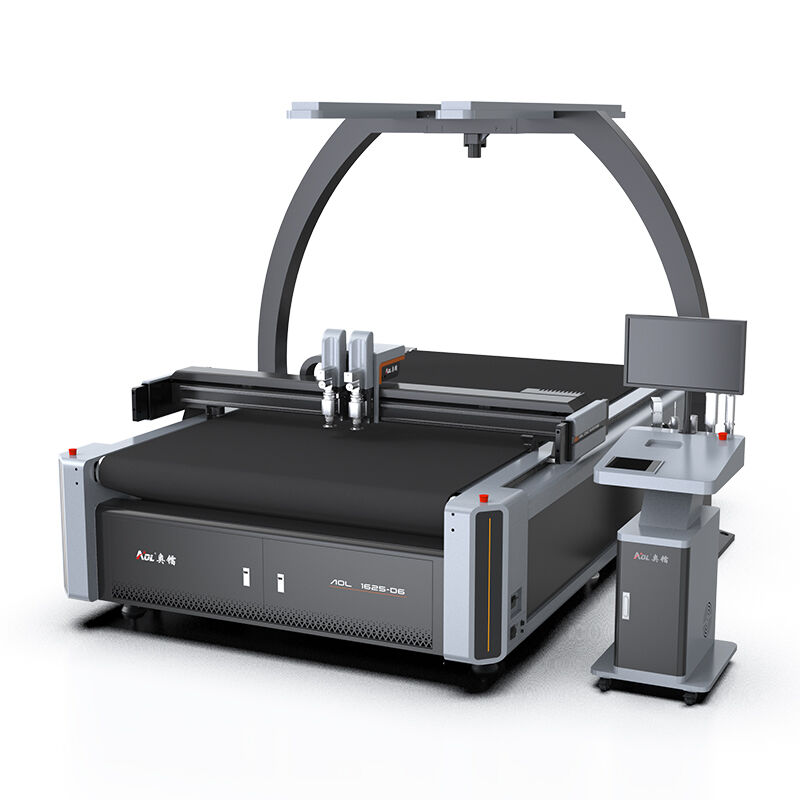

Characteristic

Gantry beam structure, strong stability.
Industrial control screen or touch screen operation, friendly interface.
Support remote upgrade and maintenance.
Sturdy aluminum honeycomb platform, good suction effect, ensure the flatness of the platform, and no deformation after long-term use.

Safety protection system: infrared light curtain, emergency stop button, etc. to ensure human and machine safety.
Flexible tool system, compatible with all series of tools.
Dust-proof treatment of the whole machine to reduce equipment failure rate and extend equipment service life.
Anti-static interference and soft start device to protect equipment safety and stability.

Related Cutting Tools

Electric Oscillating Tool

Driven Rotary Knife Tool

Pneumatic Knife Tool

Large Format Digital Camera

Drag Knife Tool

High-Power Rotary Knife Tool

Marking Pen

CCD-Camera

Leveling Tool

Product Video

Cutting Case

Cutting Canvas

Cutting Of Synthetic Fiber Fabrics

Foam And Sponge Fabric Cutting

Garment Pattern Fabric Cutting

Granular Fleece Cutting

PU Leather Cutting

Thick Velvet Upholstery Fabric Cutting

Velvet Fabric Cutting

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
