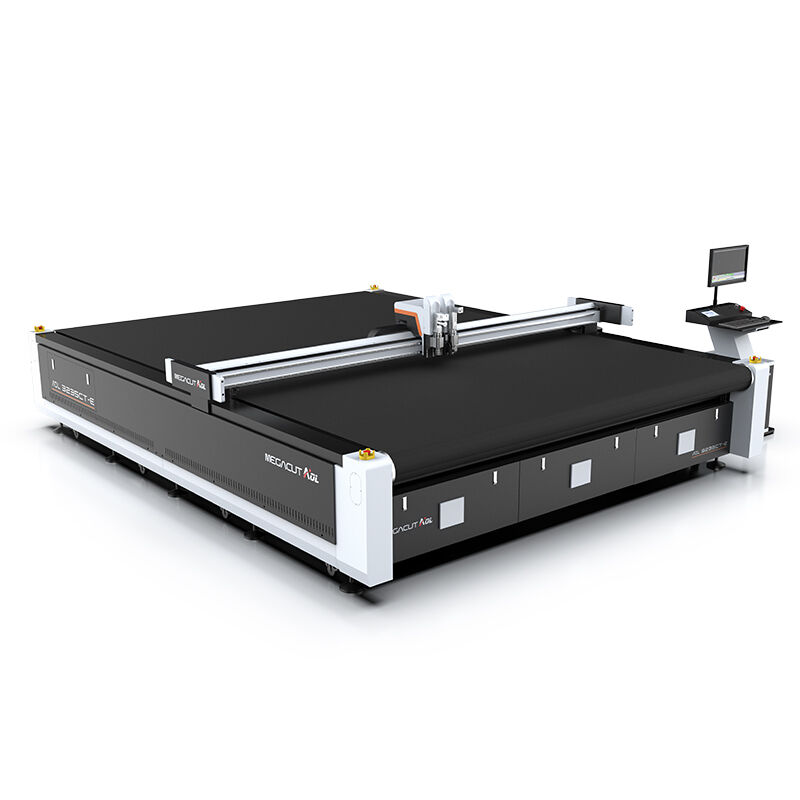

LC6-3235

The LC6-3235 CNC cutting machine is an economical and practical medium-to-large format digital cutting device. It adopts a rack and pinion drive system and basic servo control, which can achieve stable cutting of flexible materials.

- Basic servo drive system with stable performance and reliable cutting accuracy

- Modular tool design supporting vibrating, rotary, beveling, creasing, and punching tools

- Wide material compatibility, including foam, fabric, leather, cardboard, and lightweight composites

- Vacuum suction table ensures firm material hold and clean edges during medium-speed cutting

- Optional roll feeding and positioning modules for flexible production workflows

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	4188mm × 4500mm × 1350mm
Working Range	3200mm × 3500mm
Vacuum pump power	12.5KW
Rated Power	16KW
Weight	2500KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	90m/min (depending on material density.)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Servo motor, imported linear guide, ground gear rack
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Drawing tools, etc.
Drive system	Imported servo motor, linear guide, synchronous belt, screw
Cutting material	Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	24 partitions

Core Functions

Intelligent Recognition Technology

Effectively identify leather defects, increase production, reduce waste, and improve the efficient utilization of materials.

Automatic Feeding Device

The highly efficient anti-curling feeding system completes feeding and cutting within 5 seconds, enabling the machine to perform automatic continuous cutting.

Infrared Safety Device

The infrared sensor safety device ensures the safety of the operator during high-speed machine operation and prevents the loss of cutting materials.

Automatic Graphic Positioning

It enables automatic positioning and cutting of various materials, allowing for fast and precise cutting of various complex and irregularly shaped patterns.

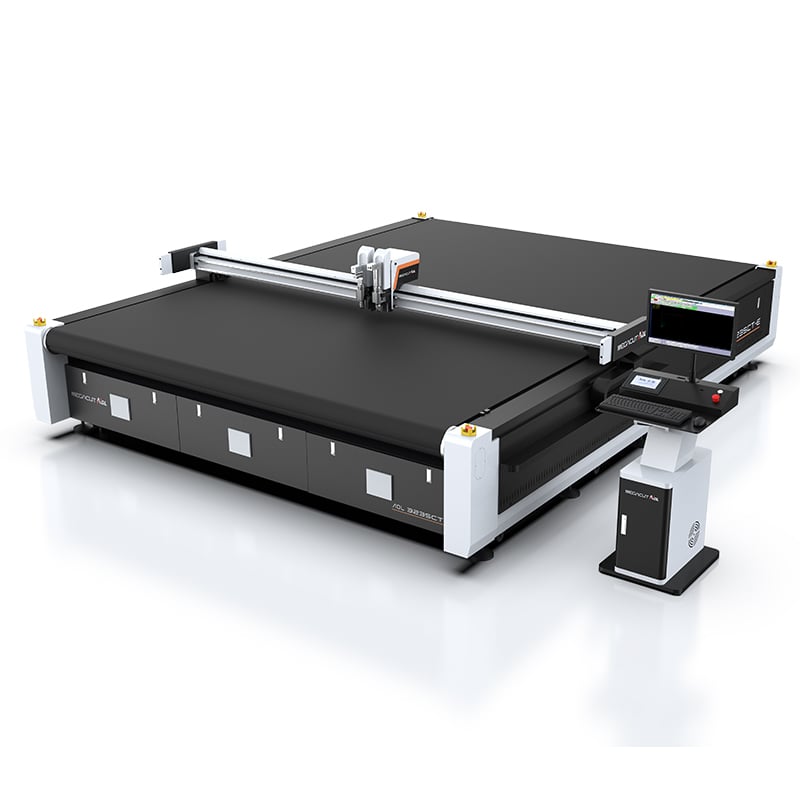

Characteristic

Intelligent Cutting Production Line: The entire process—from leather contour scanning and grading to cutting—is completed continuously on a single machine, minimizing manual operation and reducing reliance on specialized personnel.
Continuous Processing, Saving Time: Dual-zone bidirectional conveyor for scanning and cutting. Rear scanning and layout work simultaneously with front cutting and feeding.
Cutting, punching, and marking are integrated into one process, reducing production steps and enabling faster order delivery.

Vacuum Adsorption System: 48 vacuum zones with tracking adsorption effectively ensure material flatness and improve cutting accuracy.
Automatic Obstacle Detection Function: Automatically stops cutting when obstacles are detected in the cutting area, ensuring human and machine safety.
Dual-Screen Display: Expandable computer screen allows for split-screen display of layout and cutting progress, reducing switching frequency and improving operational efficiency.

Related Cutting Tools

Oscillating Knife Tool

Driven Rotary Knife Tool

Pneumatic Knife Tool

High-power Rotary Knife Tool

Adjustable Angle V-Cut Tool

Marking Pen

Punching Tool

Leveling Tool

Product Video

Cutting Case

Chenille Fabric Cutting

Ribbed Rubber Matting Cutting

Vinyl Flooring Cutting

Cutting of Synthetic Fiber Fabrics

Coiled Wire Floor Mat Cutting

Rubber Mat Cutting

Granular Fleece Cutting

Chenille Upholstery Fabric Cut Sofa

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
