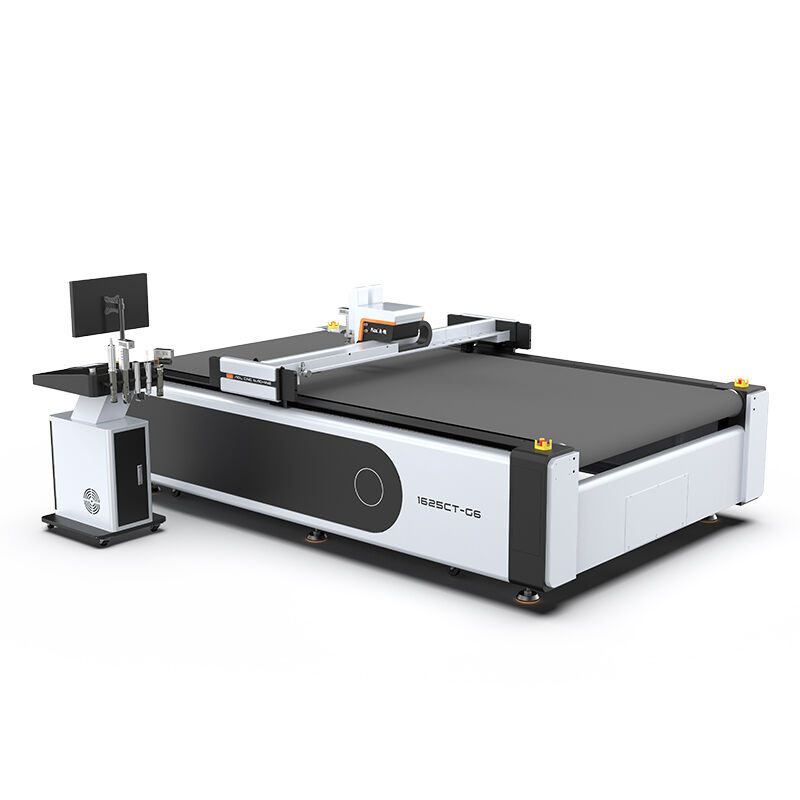

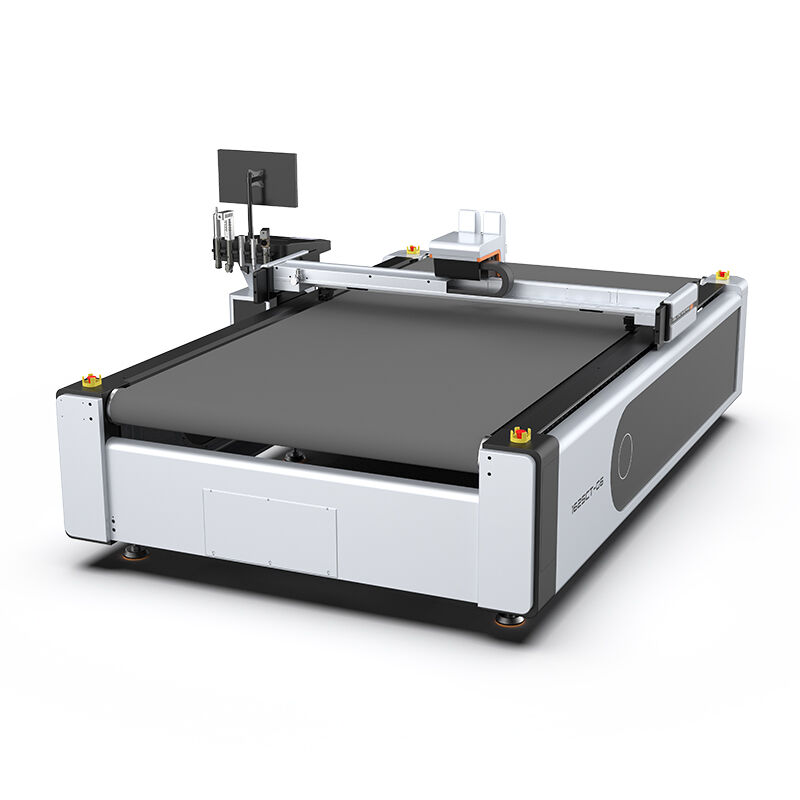

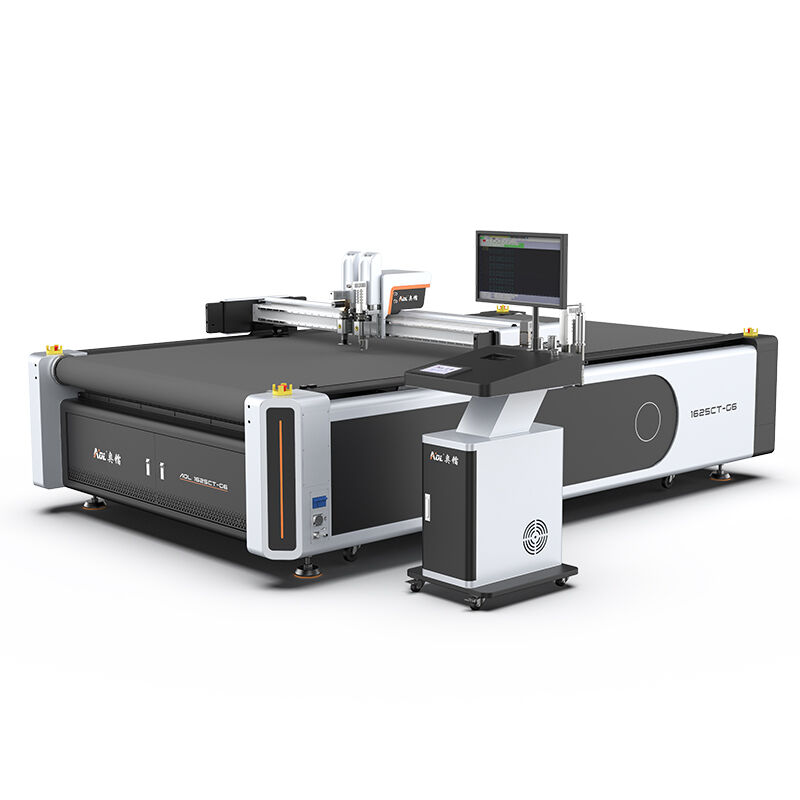

LC8-1625

The LC8-1625 CNC cutting machine is a versatile digital cutting solution designed for daily industrial production and multi-material processing. Featuring a reliable servo drive system and modular tool holder design, this oscillating knife cutting machine supports a wide range of cutting tools and materials.

·Reliable servo drive system ensures stable, consistent CNC cutting performance

·Modular tool holder design supports oscillating knives, rotary knives, beveling tools, creasing wheels, and punching tools

·Wide material compatibility including foam, fabric, leather, cardboard, and lightweight composite materials

·Vacuum adsorption table provides firm material fixation for clean edges and improved cutting accuracy

·Designed for stable continuous cutting, suitable for daily industrial production

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	3560mm × 2350mm × 1221mm
Working Range	1600mm × 2500mm
Vacuum pump power	9KW
Rated Power	11KW
Weight	1240KG
Safety Device	Four corners emergency stop, anti-collision safety device using infrared induction, safe and reliable
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	200–2000mm/s (depending on material density)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Servo motor, imported linear guide, ground gear rack
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Punching, etc
Drive system	Imported servo motor, linear guide, synchronous belt, screw
Cutting material	Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	16 partitions

Core Functions

Infrared Cutting Tool Positioning

The precise blade adjustment system is easy to operate and allows for accurate control of the blade depth, extending the lifespan of the felt.

Automatic Graphic Positioning

It enables automatic positioning and cutting of various materials, allowing for fast and precise cutting of various complex and irregularly shaped patterns.

Anti-Static ystem

The anti-static system of the whole machine to maximize the protection of personnel.

AOL Cutting Design Software

This powerful CAD editing and design software supports barcode reading, preventing operators from sending incorrect cutting files and improving work efficiency.

Characteristic

Gantry beam structure, strong stability.
Industrial control screen or touch screen operation, friendly interface.
Support remote upgrade and maintenance.
Sturdy aluminum honeycomb platform, good suction effect, ensure the flatness of the platform, and no deformation after long-term use.

Safety protection system: infrared light curtain, emergency stop button, etc. to ensure human and machine safety.
Flexible tool system, compatible with all series of tools.
Dust-proof treatment of the whole machine to reduce equipment failure rate and extend equipment service life.
Anti-static interference and soft start device to protect equipment safety and stability.

Related Cutting Tools

Electric Oscillating Tool

Driven Rotary Knife Tool

Drag Knife Tool

Kiss-CUT Knife Tool

Floating Kiss-Cut Knife Tool

Adjustable Angle V-Cut Tool

Adjustable Angle V-cut Knife Tool

High-Power Oscillating Knife Tool

High-Power Rotary Knife Tool

45° Fixed-Angle V-cutting Tool

Punching Tool

High-Power Milling Knife Tool

Milling Knife Tool

Marking Pen

CCD-Camera

Leveling Tool

Product Video

Cutting Case

Cardboard Grooving

Cloth Fabric Cutting Edge

Cut neatly

Cutting Edge

Cutting Rounded Corners

PTFE Gasket Cutting Sample

Sound Insulation Panel Grooving

Sticker Kiss Cut

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
