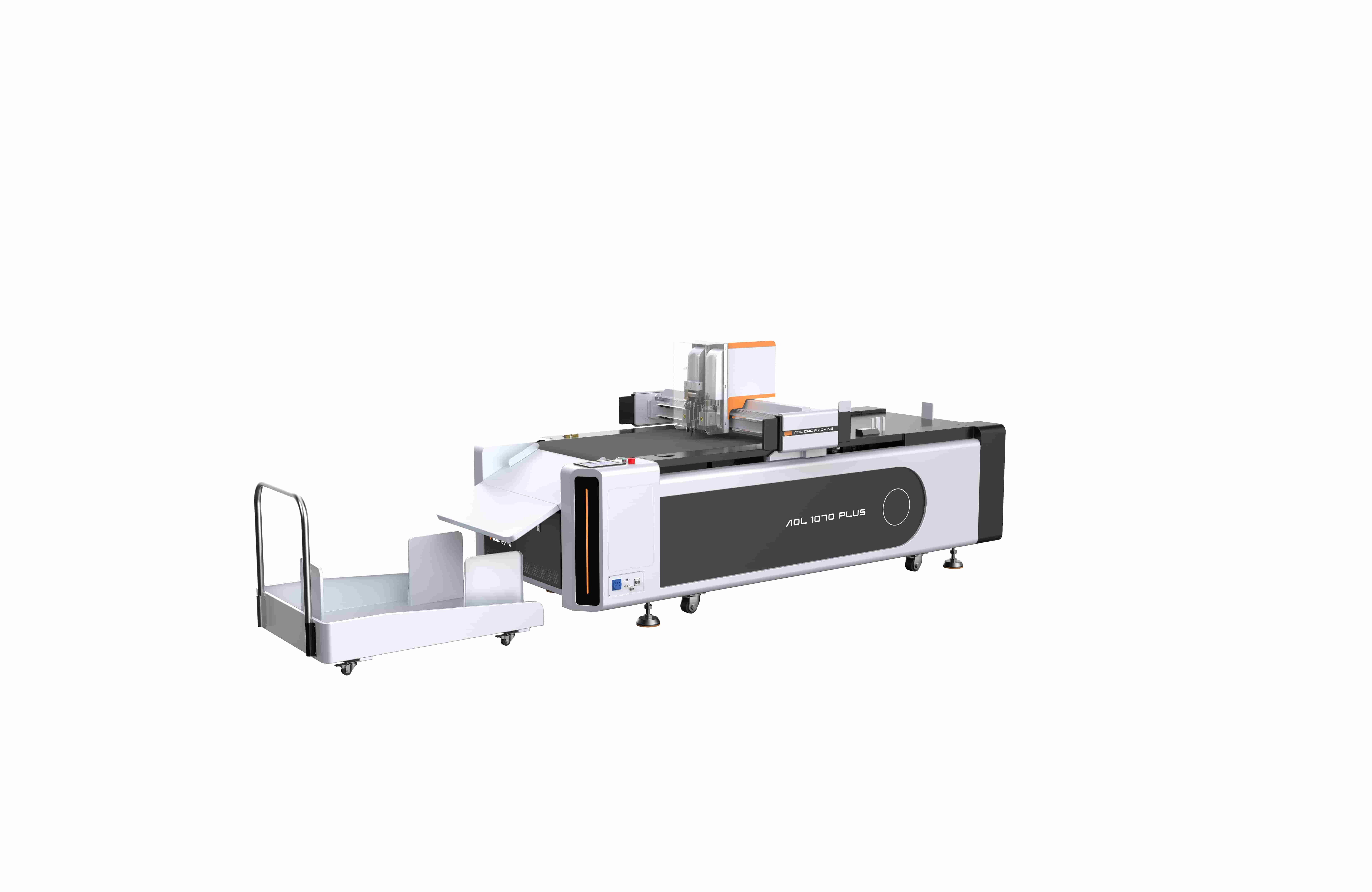

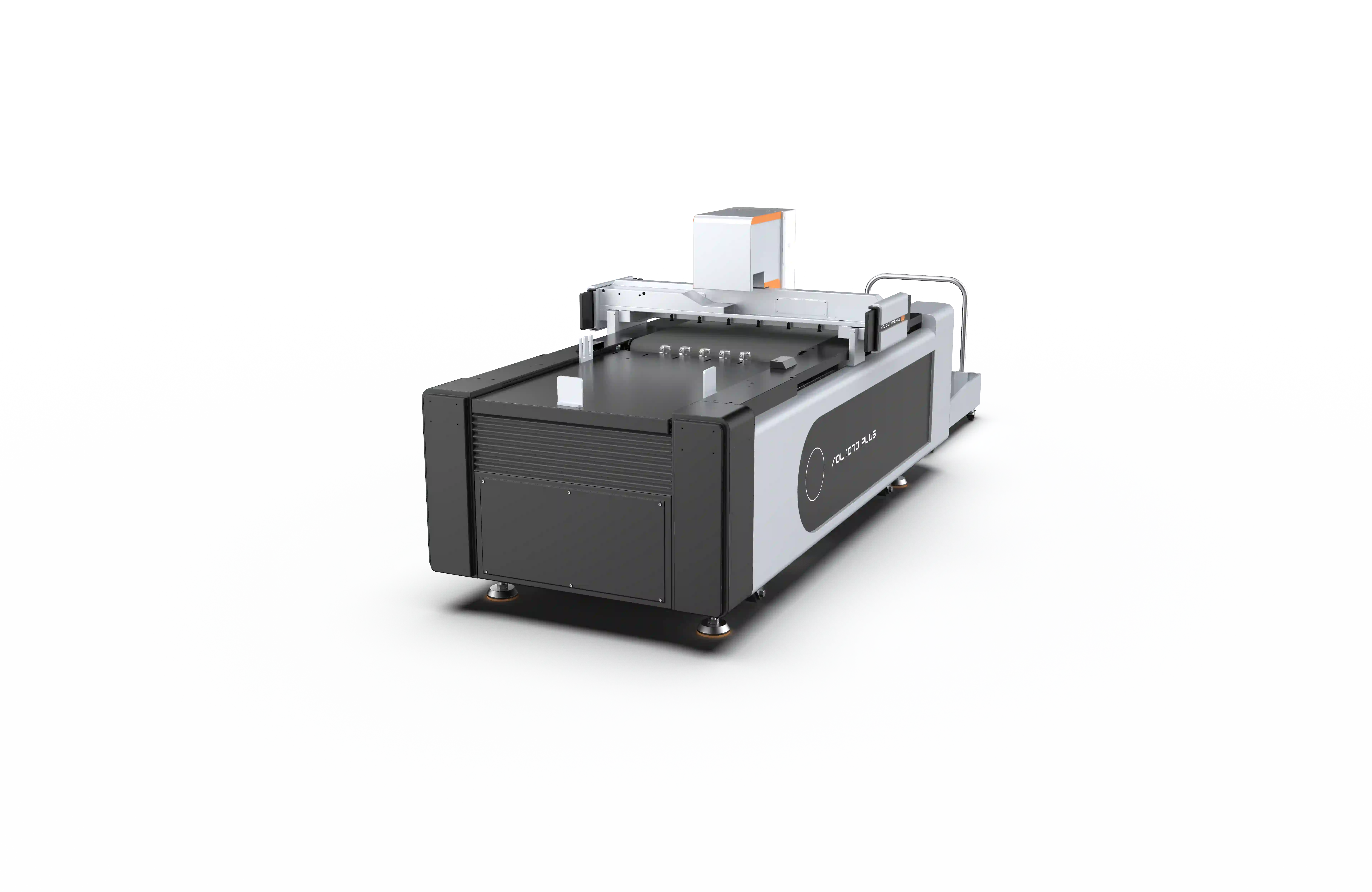

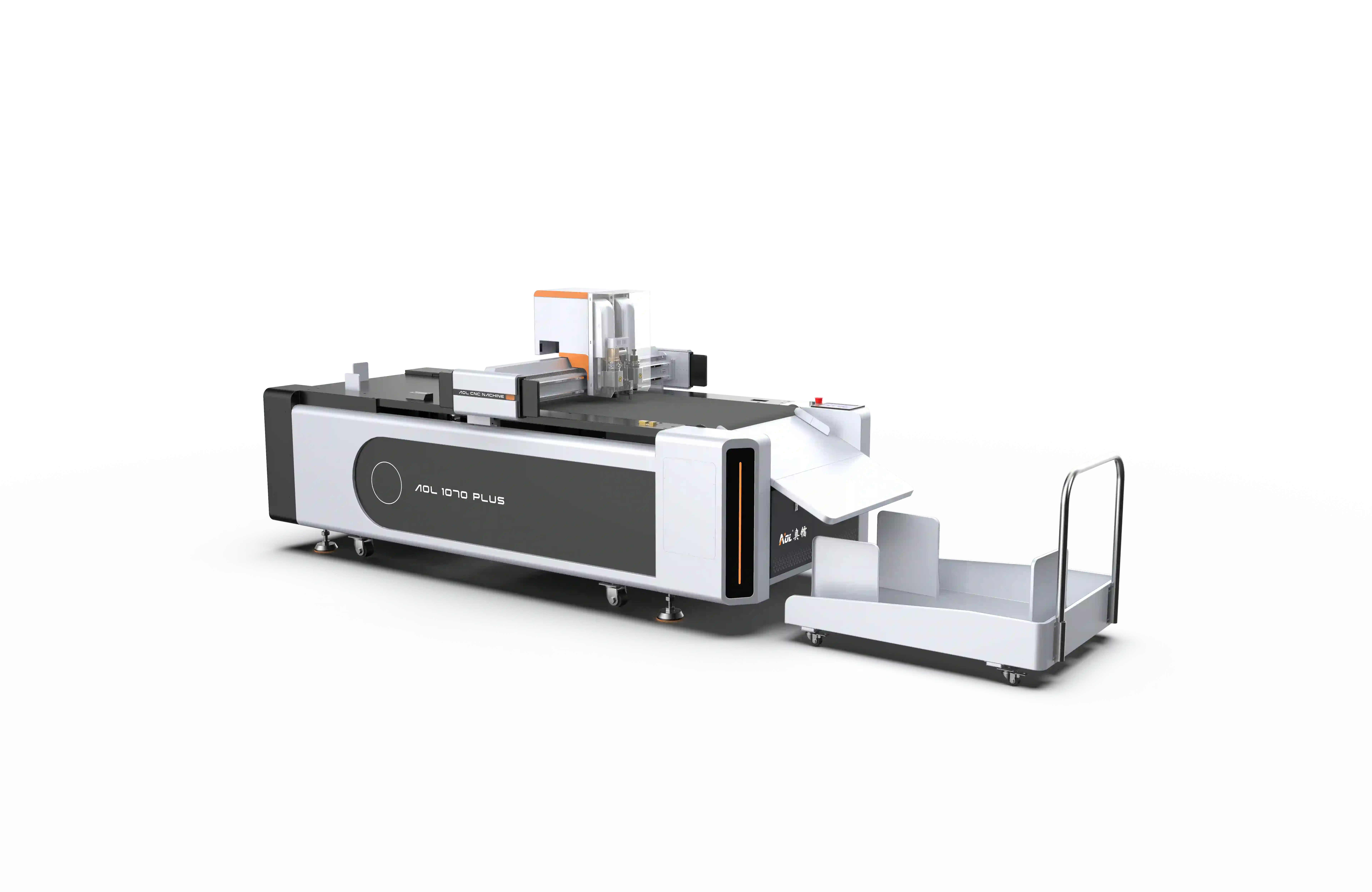

Cutting Plotter-1070PLUS

AOL-1070PLUS can quickly and accurately perform operations such as through-cutting, half-cutting, creasing, and marking, providing a perfect solution for the printing industry.

- Fully automatic vacuum suction & lifting feeding system for stable material handling

- CCD camera positioning ensures high cutting accuracy and repeatability

- Cost-effective intelligent CNC cutting solution for creative production

- Supports paper, cardboard, stickers, vinyl & packaging materials

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	3213mm × 1400mm × 1250mm
Working Range	1000mm × 700mm
Vacuum Pump Power	2.2KW
Weight	600KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Form	PDF / PLT / DXF / HP-GL
Cutting Speed	0–1200mm/s (depending on material density)
Translational Velocity	0–1800mm/s
Cutting Thickness	≤18mm (according to different materials)
Repeated Accuracy	≤0.1mm
Rated Voltage	220V ±10%
Tool Configuration	Multiple cutting knives
Multifunctional Head	Oscillating knife, drag knife, creasing wheel, marking pen, CCD camera
Cutting Material	PVC board, PP board, white card paper, cardboard, paper, PVC, film, sticker, etc. Max cutting depth up to 18mm depending on material density.
Instruction System	HP-GL compatible format
Material Fixed Way	Tracking Adsorption
Adsorption Partitions	4 partitions

Core Functions

Automatic Graphic Positioning

It enables automatic positioning and cutting of various materials, allowing for fast and precise cutting of various complex and irregularly shaped patterns.

AOL Cutting Design Software

This powerful CAD editing and design software supports barcode reading, preventing operators from sending incorrect cutting files and improving work efficiency.

Multiple Cutting Tools

One machine can be equipped with multiple cutting tools, enabling multi-purpose use and meeting the diverse cutting needs of different materials.

Infrared Safety Device

The infrared sensor safety device ensures the safety of the operator during high-speed machine operation and prevents the loss of cutting materials.

Characteristic

CCD Sensor Automatic Positioning : The camera automatically inspects edges and performs high-speed cutting.
Automatic Paper Feeding System : Pneumatic automatic paper feeding system, capable of stacking up to 600 sheets of paper, scanning speed 5-10 seconds; paper feeding speed up to 12 sheets/minute.

Aviation-grade Aluminum Alloy Vacuum Adsorption Platform : Robust and durable, heat-insulated and corrosion-resistant, with a wider range of applications.
Self-developed CAM Software : Digital software is used to compensate for and optimize the path to improve production efficiency.
