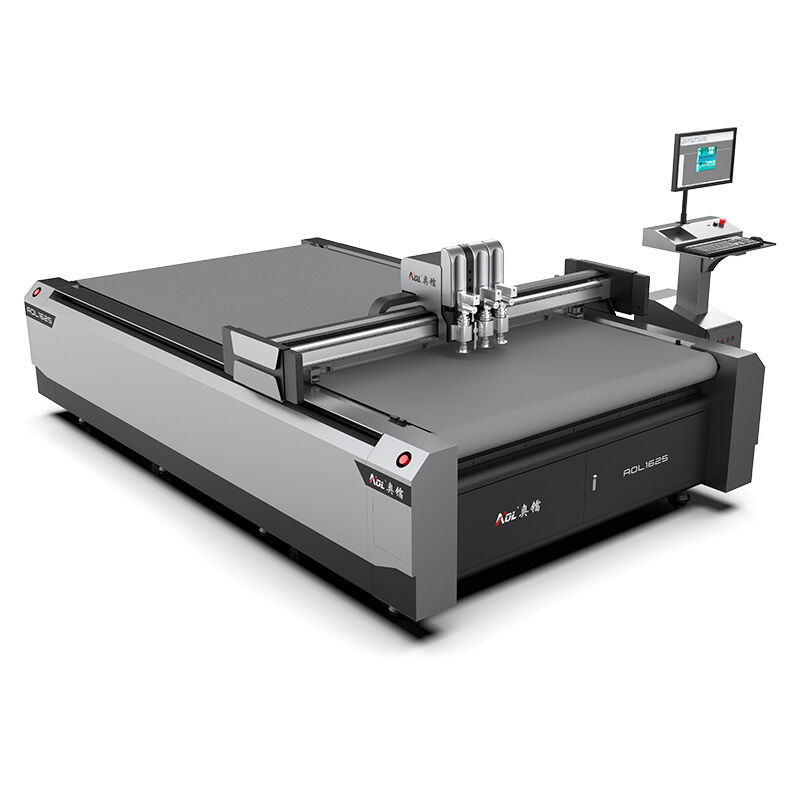

LC6-1625

The LC6-1625 CNC cutting machine is a high-performance, cost-effective digital cutting device designed for small and medium-sized enterprises, startup factories, and studios.

- Cost-effective design for beginners, small workshops, and startups

- Lightweight structure with stable motion control for accurate, reliable cutting

- Modular tool system supporting vibrating blades, rotary blades, creasing, drawing, and punching tools

- Versatile material compatibility, including cardboard, leather, EVA, KT board, films, and fabrics

- Low investment, easy operation, ideal for daily non-metal cutting tasks

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	3560mm×2350mm×1221mm
Working Range	1600mm×2500mm
Vacuum pump power	9KW
Rated Power	11KW
Weight	1240KG
Safety Device	Four corners emergency stop, anti-collision safety device using infrared induction, safe and reliable
File Form	PLT/DXF/CAD/PDF/JPG/TIF
Cutting Speed	200-2000mm/s (depending on material density.)
Cutting Thickness	≤50mm((According to different materials))
Repeated Accuracy	≤0.1mm
Transmission System	Servo motor, imported linear guide, ground gear rack
System	AOL
Rated voltage	380V±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Punching, etc
Drive system	Imported servo motor, linear guid, synchronous belt, screw
Cutting material	Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	16 partitions

Core Functions

Superior Layout Software

Superior layout software, increasing material utilization by over 10%.

Automatic Feeding Device

The highly efficient anti-curling feeding system completes feeding and cutting within 5 seconds, enabling the machine to perform automatic continuous cutting.

Honeycomb Countertop

The sturdy aluminum honeycomb platform provides excellent suction and ensures the platform remains flat and does not deform even after prolonged use.

Vacuum Adsorption

Powerful airflow and strong suction, with adjustable vacuum suction area size, significantly reducing power consumption.

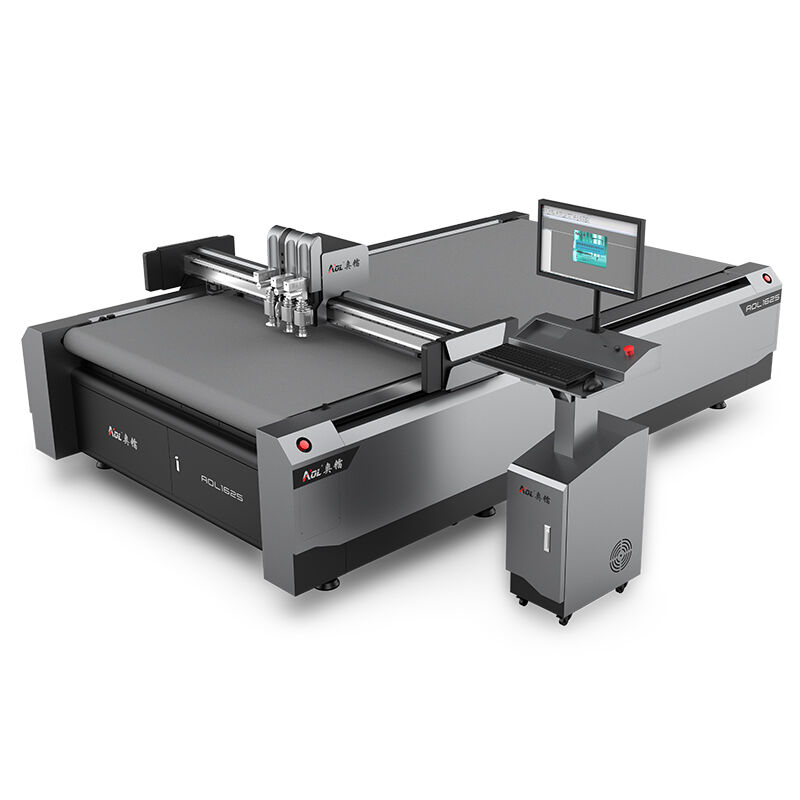

Characteristic

AOLCUT self-developed software can be imported with one key, and ordinary workers can work proficiently within 2 hours
Use guide rail drive system with accuracy ±0.1mm
AOL rapid tool exchange system provides a variety of cutting tool options for various materials
Super nesting software, material utilization rate increased by more than 10%

Select servo system to increase production efficiency by more than five times
Automatic pulling and unloading, saving time, effort and more environmental protection
The anti-static system of the whole machine to maximize the protection of personnel safety
Professional R&D team can provide assembly line supporting plan
This model has won 6 patented technology certifications at home and abroad
