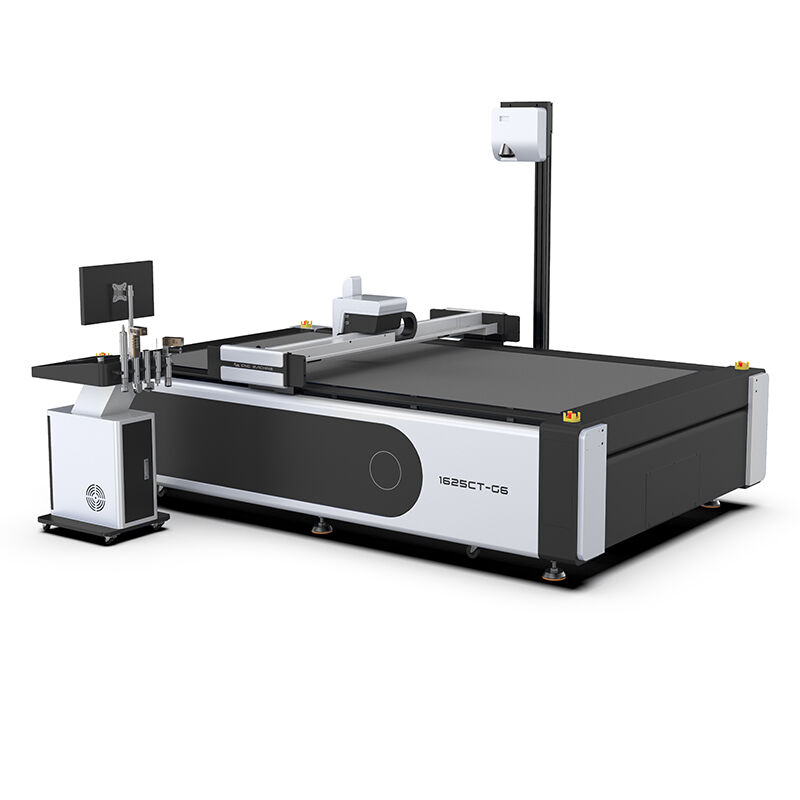

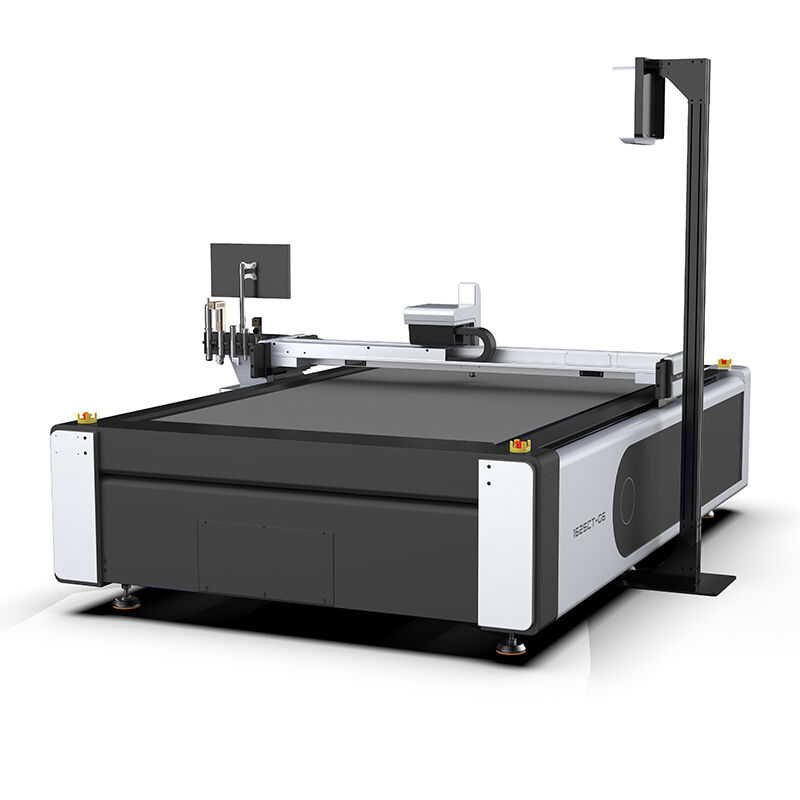

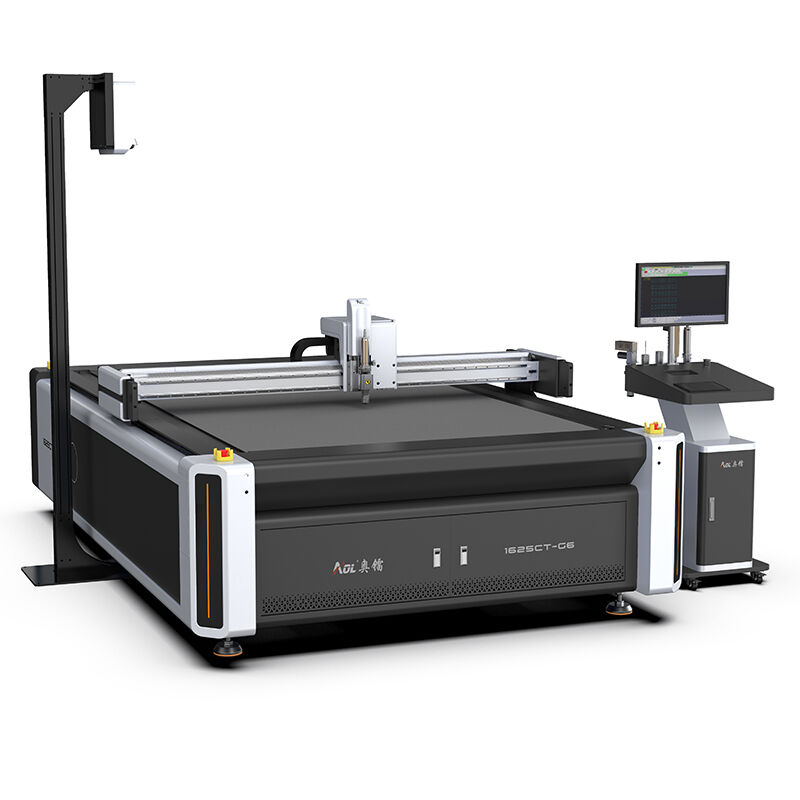

LC8-TY is an advanced device that combines projection technology with CNC cutting technology. Through the projector technology, the device can project graphics or cutting paths onto the material surface in real time.
| Product Size | 3560mm × 2350mm × 1221mm |
| Working Range | 1600mm × 2500mm |
| Vacuum pump power | 9KW |
| Rated Power | 11KW |
| Weight | 1240KG |
| Safety Device | Four corners emergency stop, anti-collision safety device using infrared induction, safe and reliable |
| File Form | PLT / DXF / CAD / PDF / JPG / TIF |
| Cutting Speed | 200–2000mm/s (depending on material density.) |
| Cutting Thickness | ≤50mm (According to different materials) |
| Repeated Accuracy | ≤0.1mm |
| Transmission System | Servo motor, imported linear guide, ground gear rack |
| System | AOL |
| Rated voltage | 380V ±10% |
| Cutting Tools | Oscillating knife, Pneumatic knife, Punching, etc |
| Drive system | Imported servo motor, linear guide, synchronous belt, screw |
| Cutting material | Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc. |
| Interface | Enternet port |
| Material fixed way | Tracking Adsorption |
| Adsorption partitions | 16 partitions |
