Customized equipment-3235ZP

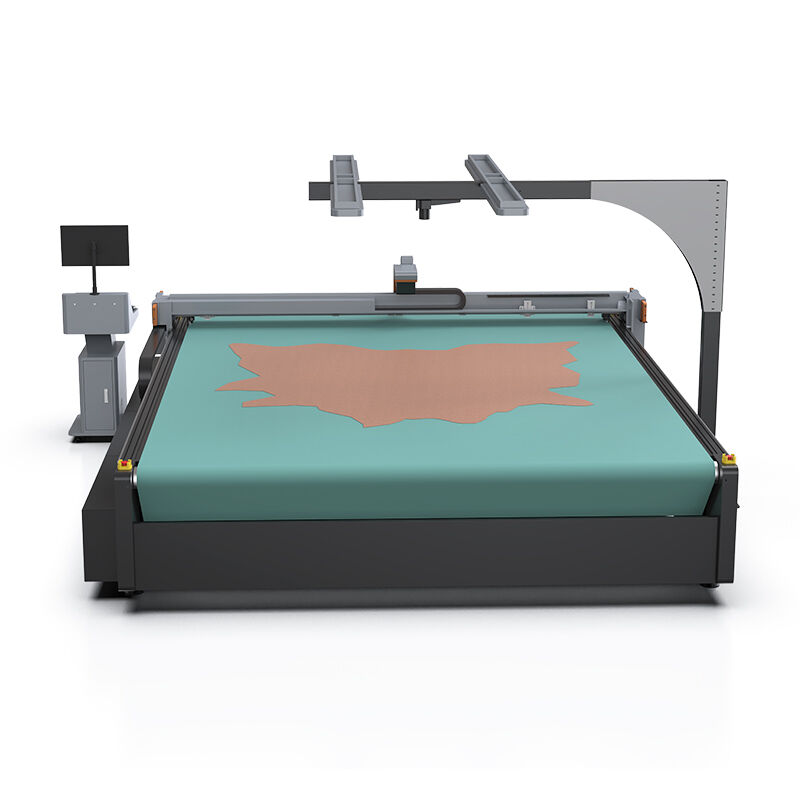

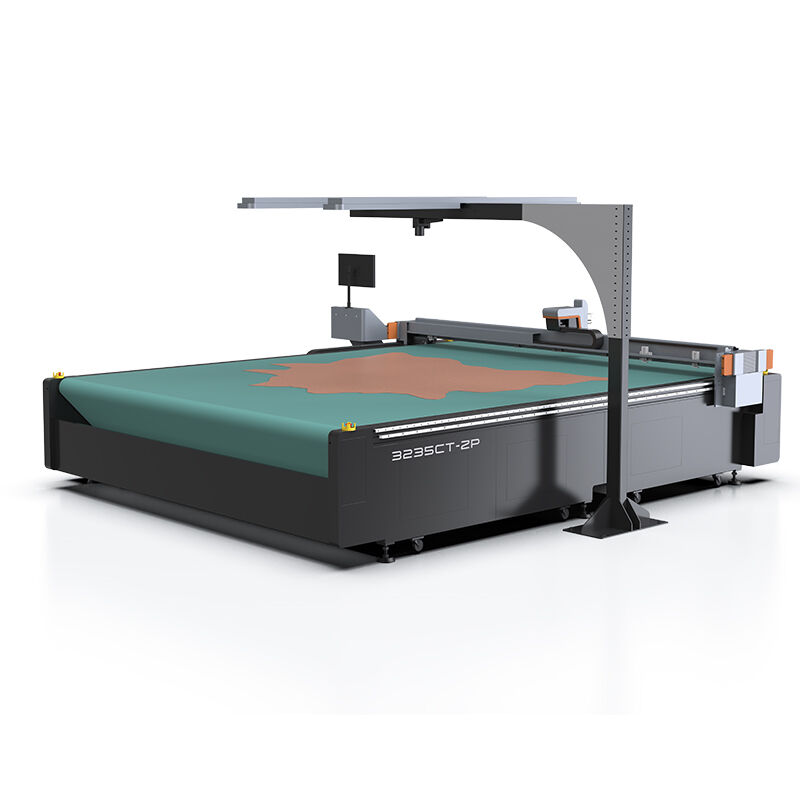

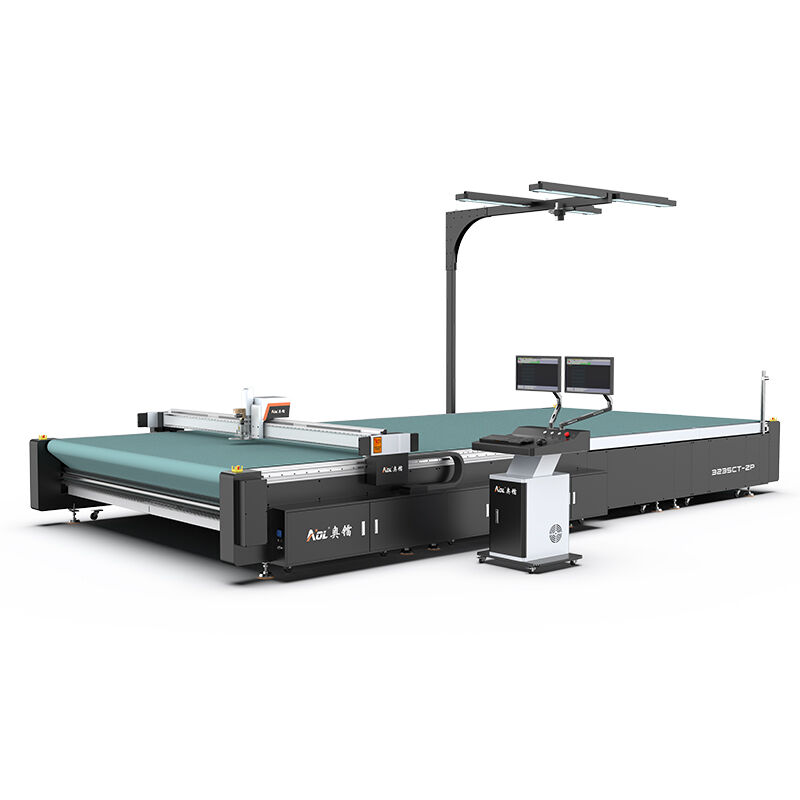

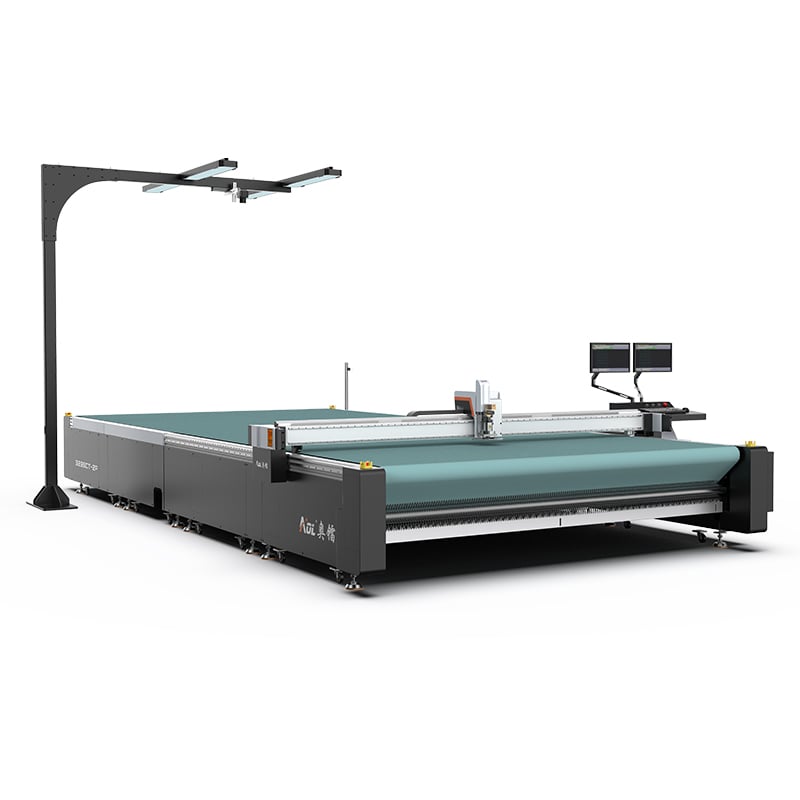

The 3235ZP customized leather CNC cutting machine is a large-format intelligent digital cutting solution designed specifically for genuine leather, synthetic leather, and high-end leather product manufacturing.

·Professional leather CNC cutting machine designed for genuine leather and synthetic leather processing

·Vision recognition technology identifies natural textures and defects to optimize leather utilization

·Supports full cowhides, leather sheets, and pre-cut pieces for flexible production

·Delivers high efficiency, reduced material waste, and consistent cutting quality

·Optional projection system, barcode management, and automatic feeding for intelligent leather cutting workflows

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	3916mm × 7831.5mm × 3395mm
Working Range	3200mm × 3500mm
Vacuum Pump Power	12.5KW
Rated Power	18KW
Weight	2700KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Format	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	90m/min (depending on material density)
Cutting Thickness	≤30mm (according to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Imported servo motors, linear guides, ground gears and racks
System	AOL
Rated Voltage	380V ±10%
Cutting Tools	Oscillating knife, pneumatic knife, punching, drawing tools, etc.
Drive System	Imported servo motor, linear guide, synchronous belt, screw
Cutting Material	Flexible leather, microfiber cowhide, etc.
Interface	Ethernet port
Material Fixed Way	Tracking adsorption
Adsorption Partitions	48 partitions

Core Functions

Superior Layout Software

Superior layout software increases material utilization by over 10%.

Intelligent Recognition Technology

Effectively identify leather defects, increase production, reduce waste, and improve the efficient utilization of materials.

Automatic Feeding Device

The highly efficient anti-curling feeding system completes feeding and cutting within 5 seconds, enabling the machine to perform automatic continuous cutting.

Multilingual Support and Remote Maintenance

Multilingual support and remote maintenance capabilities are important features that reflect the internationalization and intelligence of CNC cutting equipment, making them particularly suitable for export equipment and customers in different regions.

Characteristic

High-Quality Imported Felt: Strong friction firmly holds the material, providing high color contrast, thus shortening leather recognition time and improving cutting accuracy.
Infrared Safety Device: Equipped with a high-sensitivity infrared sensor, the safety device automatically stops when an obstacle is detected in the cutting area, ensuring the safety of personnel and the machine.

Dual-Gantry Synchronous Asynchronous Cutting: Dual-head asynchronous operation allows two working heads to operate independently, handling different tasks simultaneously and effectively improving work efficiency.
Streamline Operation: The AOL-3235 cutting line encompasses the entire leather cutting process, from scanning and layout to cutting, completed continuously on the work platform. This minimizes manual operation and reduces reliance on specialized personnel.
Maximized Cutting Time: Dual-zone bidirectional conveyor for scanning and cutting. Rear scanning and layout, front cutting and feeding, all work simultaneously.
Cutting, punching, and marking are integrated into one process, reducing production steps.
Continuous processing is possible, saving waiting time.

Related Cutting Tools

Oscillating Knife Tool

Pneumatic Knife Tool

Driven Rotary Knife Tool

Large Format Digital Camera

Marking Pen

CCD-Camera

Leveling Tool

Product Video

Cutting Case

Chenille Upholstery Fabric Cut Sofa

Cutting Of Synthetic Fiber Fabrics

Fur Leather Cutting Sample

Genuine Leather Cut Pieces

Leather Cutting Sample

PU Leather Cutting

PVC Leather Car Seat Covers Cutting

Thick Velvet Upholstery Fabric Cutting

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
