LC8-SHL

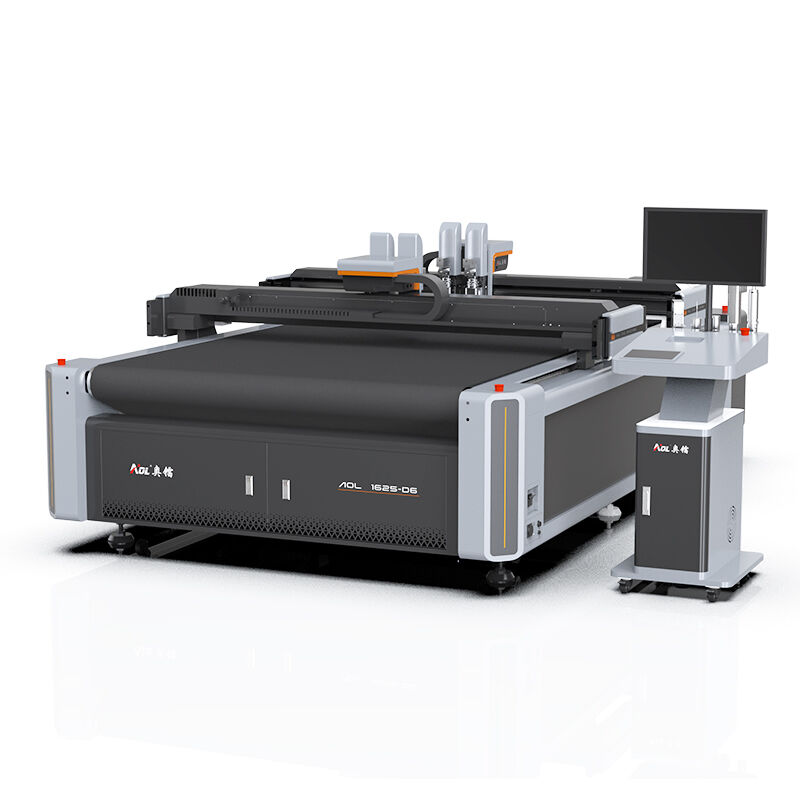

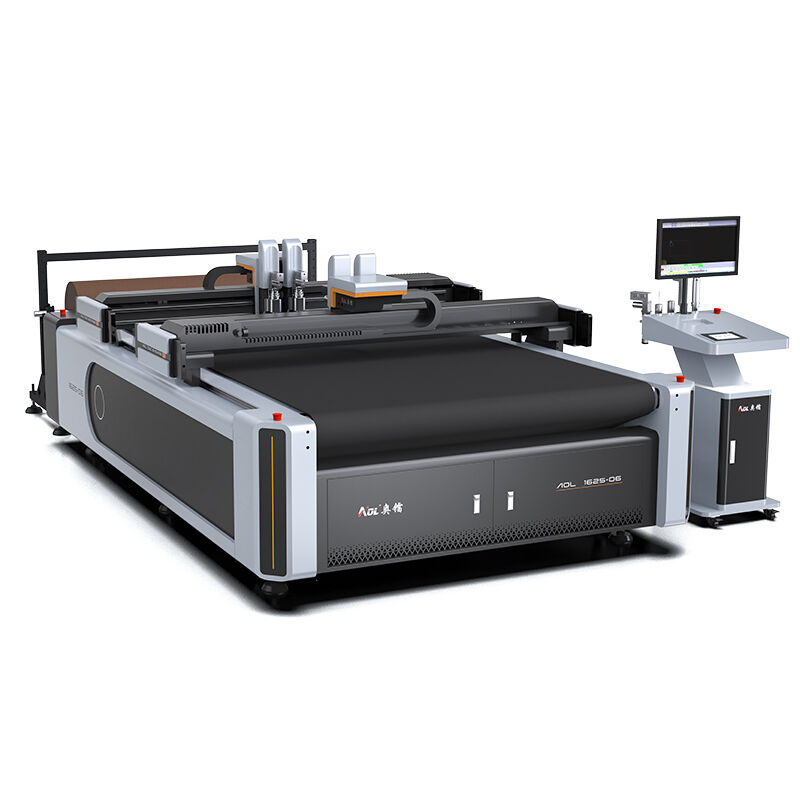

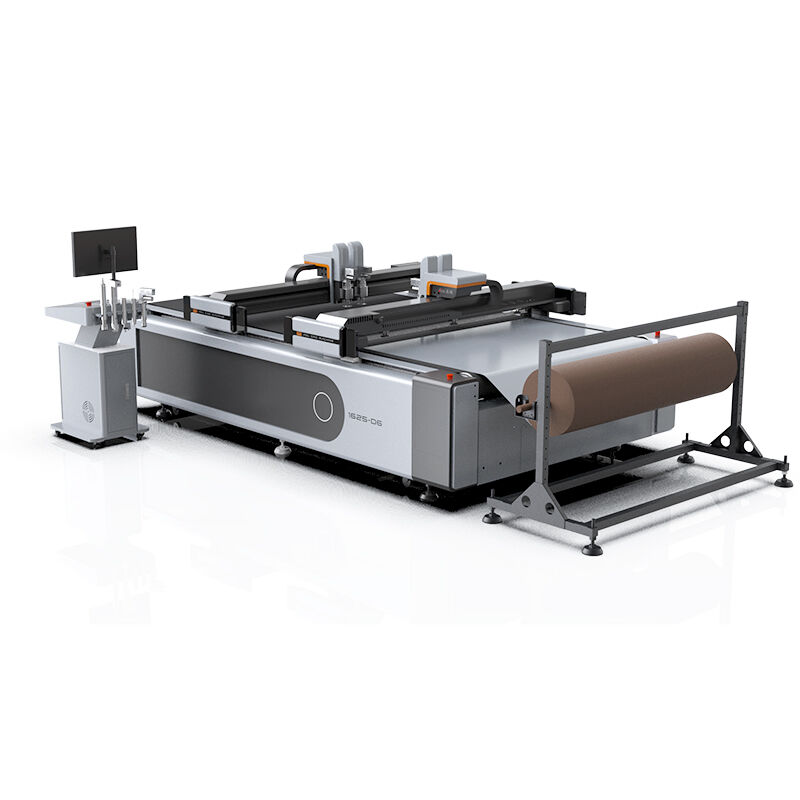

LC8-SHL is an advanced cutting machine with a double beam design, which can significantly improve production efficiency and cutting accuracy.

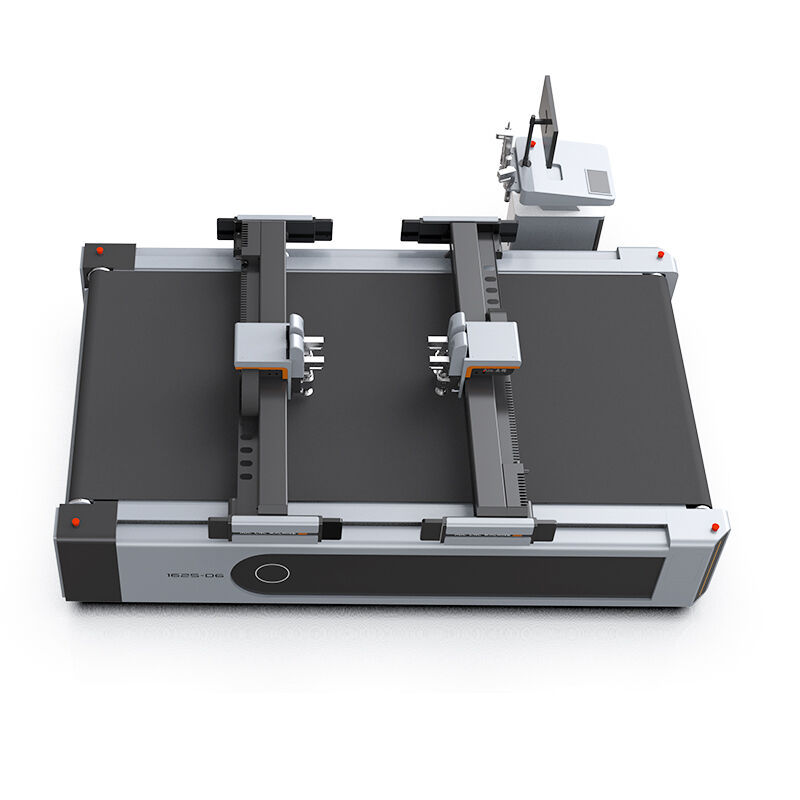

- Dual cutting systems with independent beams enable simultaneous or separate operation

- Doubles production efficiency for high-volume and complex cutting tasks

- High precision & stability for fine patterns and detailed cutting

- Wide material compatibility, including fabric, leather, foam, rubber, and paper

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	3560mm × 2350mm × 1221mm
Working Range	1600mm × 2500mm
Vacuum pump power	9KW
Rated Power	11KW
Weight	1240KG
Safety Device	Four corners emergency stop, anti-collision safety device using infrared induction, safe and reliable
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	200–2000mm/s (depending on material density)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Servo motor, imported linear guide, ground gear rack
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Punching, etc
Drive system	Imported servo motor, linear guide, synchronous belt, screw
Cutting material	Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	16 partitions

Core Functions

Infrared Cutting Tool Positioning

The precise blade adjustment system is easy to operate and allows for accurate control of the blade depth, extending the lifespan of the felt.

Anti-Static System

The anti-static system of the whole machine to maximize the protection of personnel

Multiple Cutting Tools

One machine can be equipped with multiple cutting tools, enabling multi-purpose use and meeting the diverse cutting needs of different materials.

Automatic Fault Alarm System

By monitoring equipment operating status in real time, problems can be detected in advance and operators can be promptly notified to address them, preventing minor malfunctions from escalating into major shutdowns.

Characteristic

Gantry beam structure, strong stability.
Industrial control screen or touch screen operation, friendly interface.
Support remote upgrade and maintenance.
Sturdy aluminum honeycomb platform, good suction effect, ensure the flatness of the platform, and no deformation after long-term use.

Safety protection system: infrared light curtain, emergency stop button, etc. to ensure human and machine safety.
Flexible tool system, compatible with all series of tools.
Dust-proof treatment of the whole machine to reduce equipment failure rate and extend equipment service life.
Anti-static interference and soft start device to protect equipment safety and stability.

Related Cutting Tools

Electric Oscillating Tool

Driven Rotary Knife Tool

Pneumatic Knife Tool

Drag Knife Tool

Kiss-Cut Knife Tool

Adjustable Angle V-Cut Tool

Punching Tool

Marking Pen

Leveling Tool

Product Video

Cutting Case

Cutting Edge Smoothing

Graphite Gasket Cutting Sample

Leather Cut Pieces

Leather Cutting Sample

Mica Paper Cutting

Prepreg Cutting

PTFE Gasket Cutting Sample

PVC Leather Car Seat Covers Cutting

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
