LC8-1612

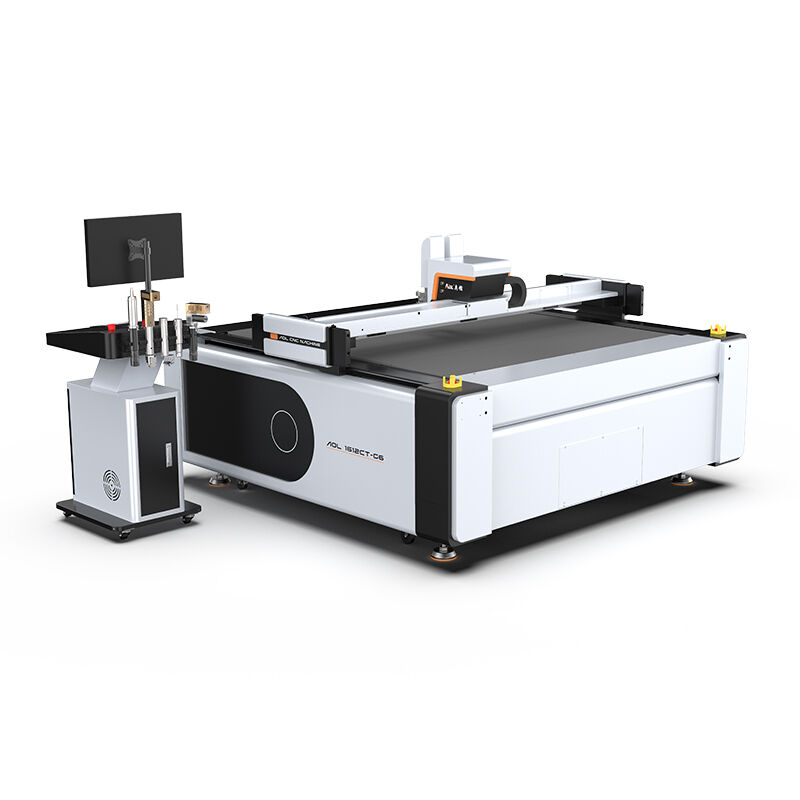

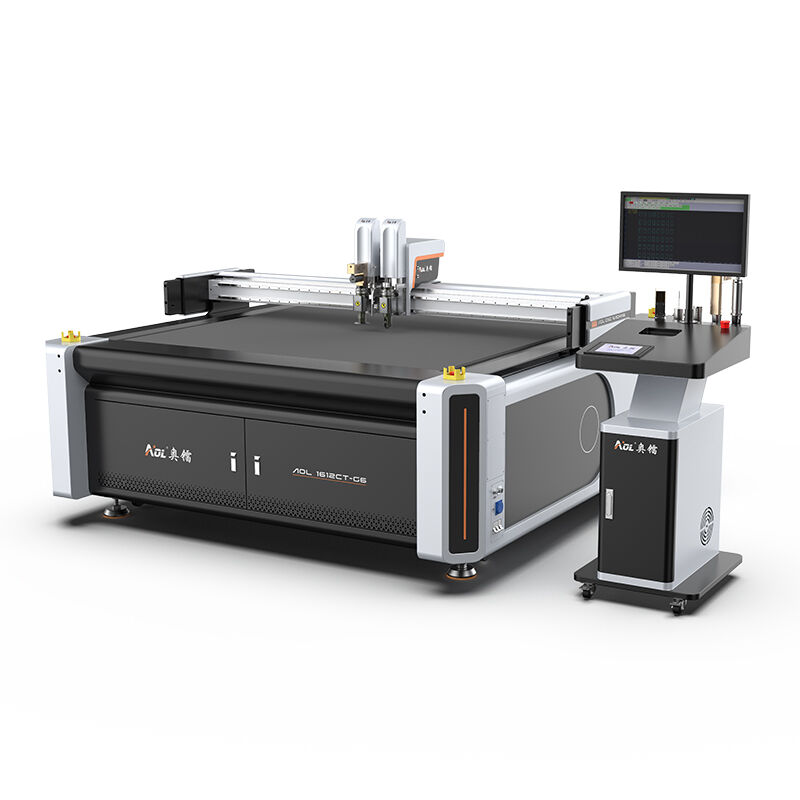

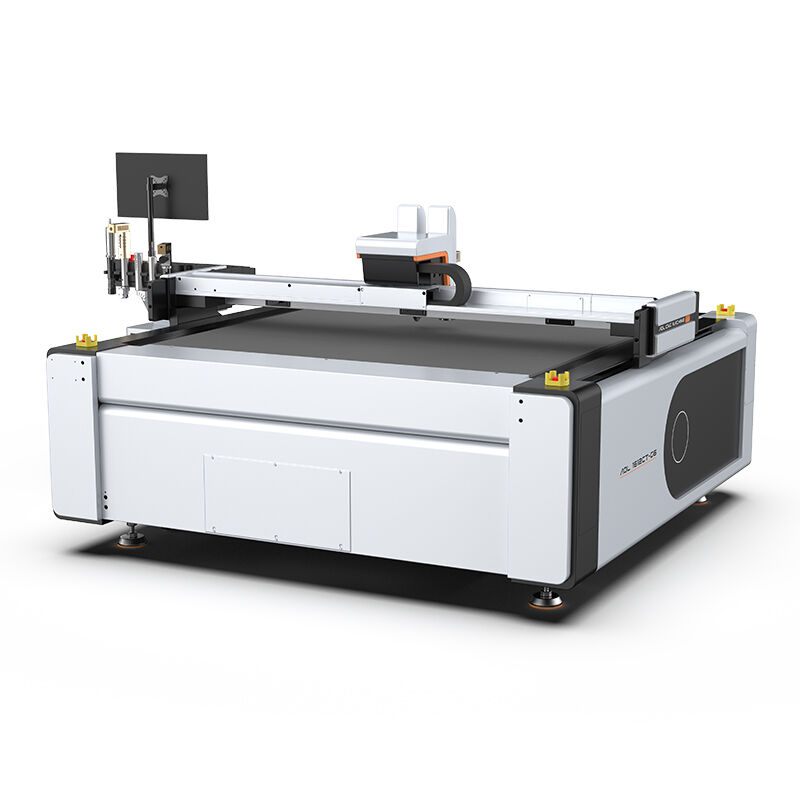

AOL-1612 is a CNC device that can read graphic files and perform cutting, creasing and other processing operations on materials through a tool according to the set path.

- Integrated intelligent technologies including correction system, CCD positioning, and multi-cutting head control

- High-precision processing for full-cut, kiss-cut, creasing, and marking in one workflow

- Smart path optimization & graphic programming to maximize material utilization and reduce waste

- Advanced production data management for efficient and traceable cutting operations

- Remote monitoring and fault diagnosis ensuring stable, efficient, and reliable system performance

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	2390mm × 2290mm × 1330mm
Working Range	1600mm × 1200mm
Vacuum pump power	5.5KW
Weight	1174KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	200-2000mm/s (depending on material density.)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Rated voltage	220V/380V ±10%
Tool configuration	Multiple culting knives
Muitfunctional Head	Oscilating knife cutting tool, drag knife cutting tool, crease wheel, marking pen V cut, crease wheel, cut-through-knife and CCD camera
Cutting material	PVC board, PP board and white card paper, cardboards, paper, PVC, fim, sticker, etc. The maximum cutting depth is up to 50mm, depending on material density.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	12 partitions

Core Functions

Infrared Cutting Tool Positioning

The precise blade adjustment system is easy to operate and allows for accurate control of the blade depth, extending the lifespan of the felt.

Anti-Static System

The anti-static system of the whole machine to maximize the protection of personnel.

Collision Avoidance And Emergency Braking Protection

This is the first line of defense for human-machine safety and stable equipment operation. Its function is to immediately stop equipment operation in the event of abnormalities or malfunctions, preventing personal injury and equipment damage.

Automatic Fault Alarm System

By monitoring equipment operating status in real time, problems can be detected in advance and operators can be promptly notified to address them, preventing minor malfunctions from escalating into major shutdowns.

Characteristic

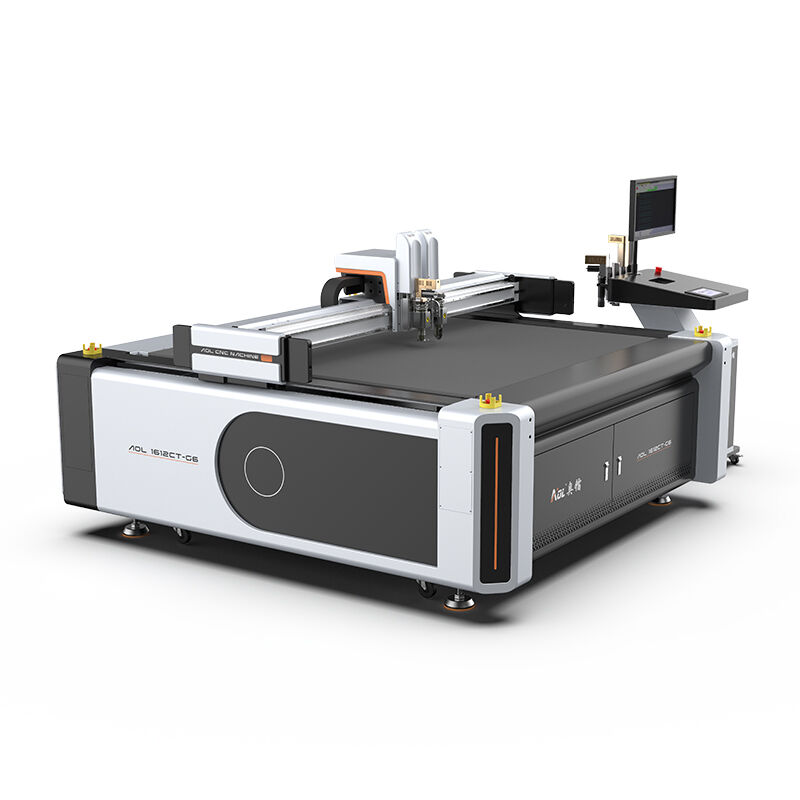

Gantry beam structure, strong stability.
Industrial control screen or touch screen operation, friendly interface.
Support remote upgrade and maintenance.
Sturdy aluminum honeycomb platform, good suction effect, ensure the flatness of the platform, and no deformation after long-term use.

Safety protection system: infrared light curtain, emergency stop button, etc. to ensure human and machine safety.
Flexible tool system, compatible with all series of tools.
Dust-proof treatment of the whole machine to reduce equipment failure rate and extend equipment service life.
Anti-static interference and soft start device to protect equipment safety and stability.

Related Cutting Tools

Oscillating Knife Tool

5MM Servo-Driven Oscillating Knife Tool

Driven Rotary Knife Tool

Pneumatic Knife Tool

45° Fixed-Angle V-Cutting Tool

High-Power Rotary Knife Tool

Adjustable Angle V-Cut Tool

Marking Pen

Punching Tool

Leveling Tool

Product Video

Cutting Case

Cardboard Grooving

Cloth Fabric Cutting Edge

Cut neatly

Cutting Edge

Cutting Rounded Corners

PTFE Gasket Cutting Sample

Sound Insulation Panel Grooving

Sticker Kiss Cut

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
