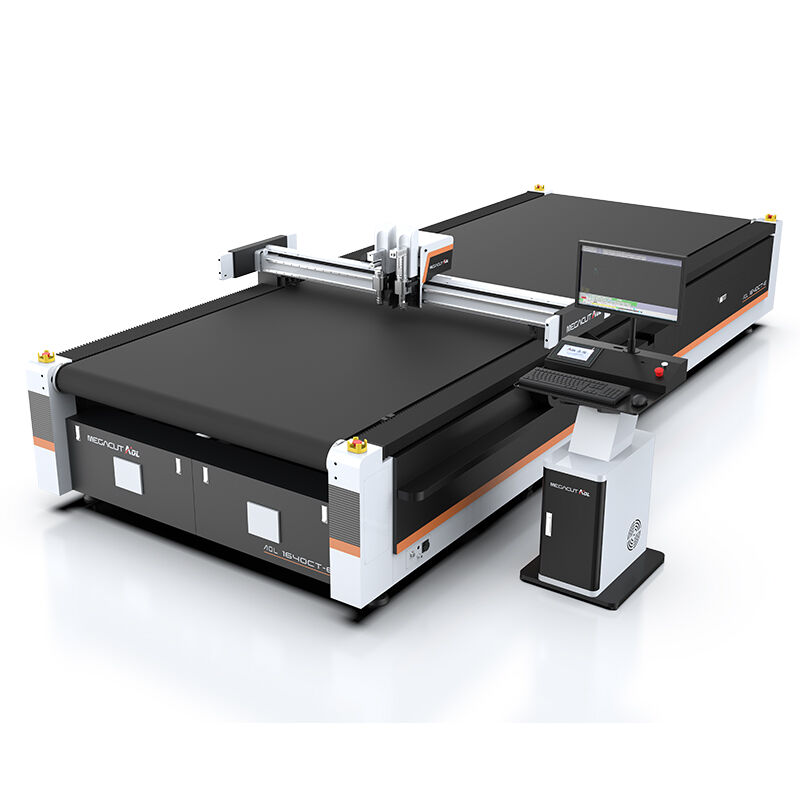

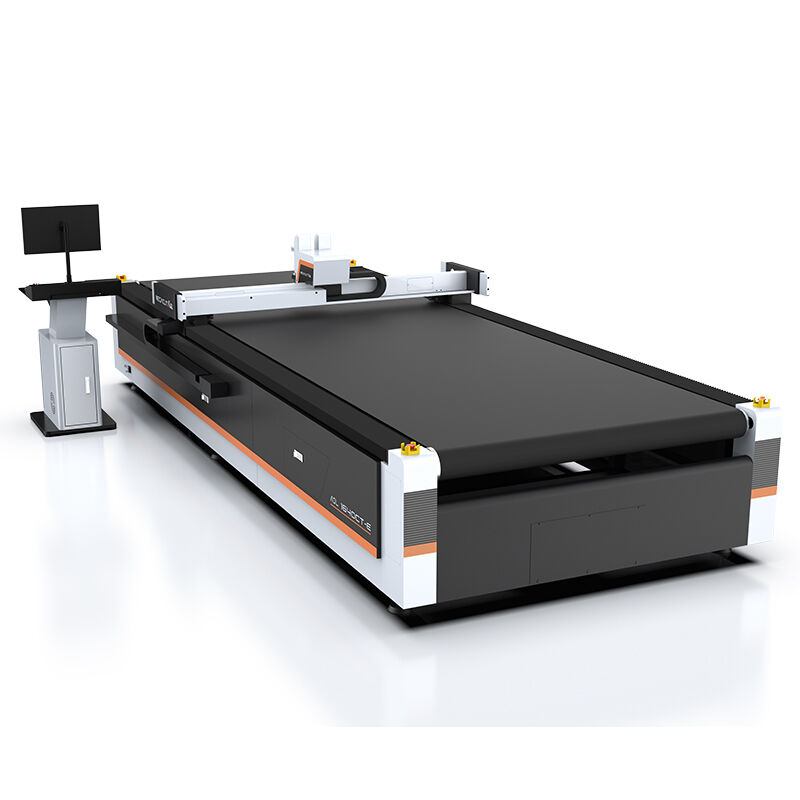

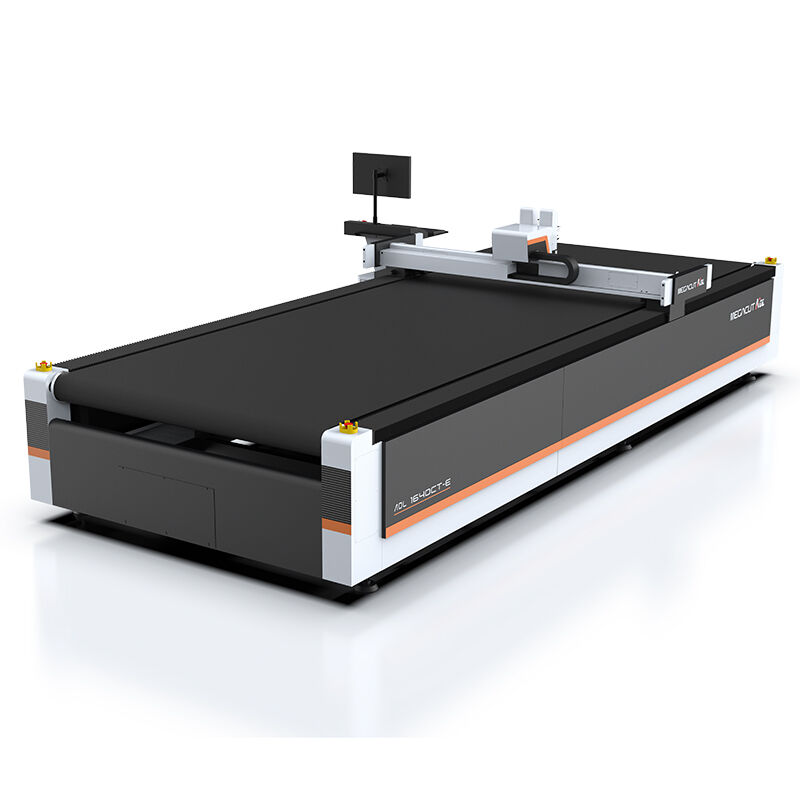

LC6-1640

The LC6-1640 CNC cutting machine is a high-performance, easy-to-operate digital cutting device, ideal for advertising samples, handmade leather goods, packaging sampling, model making, and small-batch production.

- Optional automation upgrades including small-scale auto feeding, camera positioning, and barcode task management

- Economical and practical design with stable structure, simple operation, and low maintenance cost

- Widely applied in advertising proofing, leather craft samples, small-batch packaging, model making, and education

- Ideal entry-level CNC cutting machine for startups and small factories

- Modular tool holder system supporting vibrating knives, rotary knives, beveling knives, creasing tools, drawing pens, and punching tools

- Vacuum adsorption table + intelligent software enabling automatic layout, path planning, and fast learning curve

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	2260mm × 5150mm × 1350mm
Working Range	1600mm × 4000mm
Vacuum pump power	9KW
Rated Power	12KW
Weight	1500KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	90m/min (depending on material density.)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Servo motor, imported linear guide, ground gear rack
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Punching, etc
Drive system	Imported servo motor, linear guid, synchronous belt, screw
Cutting material	Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	12 partitions

Core Functions

Superior Layout Software

Superior layout software, increasing material utilization by over 10%.

Automatic Feeding Device

The highly efficient anti-curling feeding system completes feeding and cutting within 5 seconds, enabling the machine to perform automatic continuous cutting.

Vacuum Adsorption

Powerful airflow and strong suction, with adjustable vacuum suction area size, significantly reducing power consumption.

Multilingual Support and Remote Maintenance

Multilingual support and remote maintenance capabilities are important features that reflect the internationalization and intelligence of CNC cutting equipment, making them particularly suitable for export equipment and customers in different regions.

Characteristic

AOLCUT self-developed software can be imported with one key, and ordinary workers can work proficiently within 2 hours
Use guide rail drive system with accuracy ±0.1mm
AOL rapid tool exchange system provides a variety of cutting tool options for various materials
Super nesting software, material utilization rate increased by more than 10%

Select servo system to increase production efficiency by more than five times
Automatic pulling and unloading, saving time, effort and more environmental protection
The anti-static system of the whole machine to maximize the protection of personnel safety
Professional R&D team can provide assembly line supporting plan
This model has won 6 patented technology certifications at home and abroad

LC6-1640

Parameter

Core Functions

Superior Layout Software

Automatic Feeding Device

Vacuum Adsorption

Multilingual Support and Remote Maintenance

Characteristic

Related Cutting Tools

Oscillating Knife Tool

Driven Rotary Knife Tool

Drag Knife Tool

Kiss-CUT Knife Tool

Adjustable Angle V-cut Knife Tool

Marking Pen

Punching Tool

Leveling Tool

Product Video

Cutting Case

Clear Table Protector Cutting

Coiled Wire Car Floor Mats Cutting

Ice Silk Car Seat Cover Leather Cutting

Irregular Shaped Rugs Cutting

Printed Carpet Cutting

PVC Seat Material Cutting

Rubber Mat Cutting

Wool Carpet Cutting
