LC8-1640

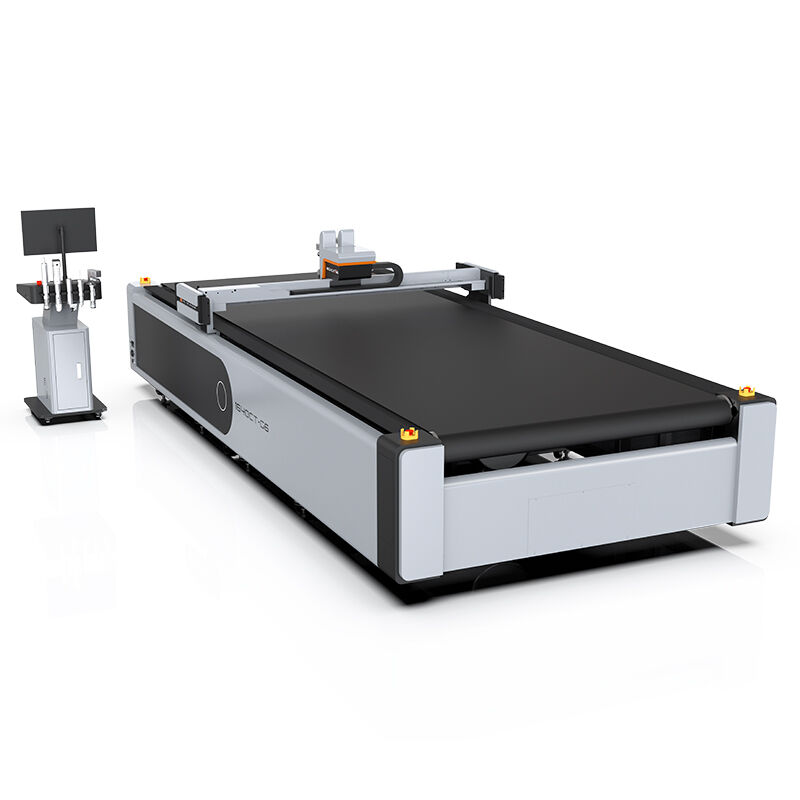

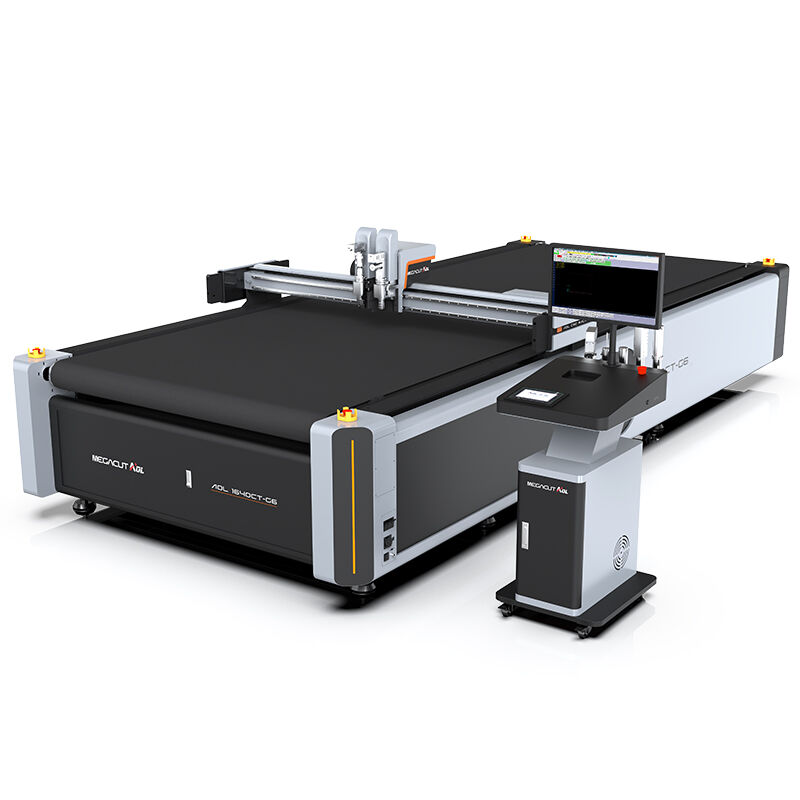

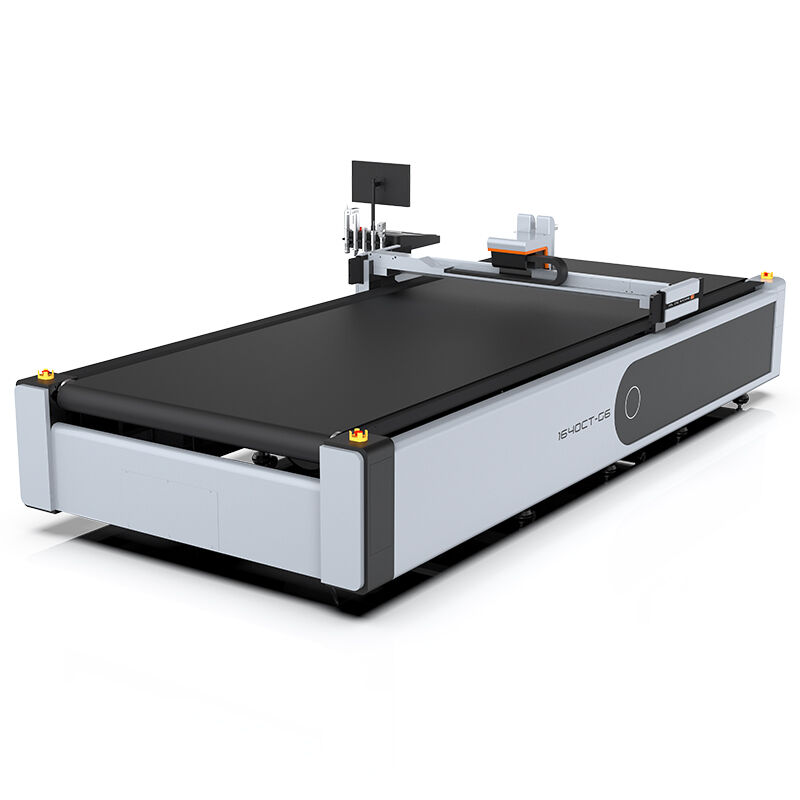

The 1640 CNC Cutting Machine is a high-precision digital cutting system designed for large-format materials and continuous production workflows.

- 1600 × 4000 mm large-format CNC cutting machine for high-volume production

- Modular tool system supports cutting, creasing, punching, and milling

- Cuts fabric, leather, EVA, foam, rubber, cardboard, and composites

- High precision, high speed, ideal for industrial multi-material cutting

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	2260mm × 5150mm × 1350mm
Working Range	1600mm × 4000mm
Vacuum pump power	9KW
Rated Power	12KW
Weight	1500KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	90m/min (depending on material density.)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Servo motor, imported linear guide, ground gear rack
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Punching, etc
Drive system	Imported servo motor, linear guide, synchronous belt, screw
Cutting material	Advertising cloth, acrylic, PVC mesh fabric, PU, leather, knitted fabric, coated fabric, carpet, etc.
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	12 partitions

Core Functions

Superior Layout Software

Superior layout software, increasing material utilization by over 10%.

Automatic Feeding Device

The highly efficient anti-curling feeding system completes feeding and cutting within 5 seconds, enabling the machine to perform automatic continuous cutting.

Infrared Safety Device

The infrared sensor safety device ensures the safety of the operator during high-speed machine operation and prevents the loss of cutting materials.

Automatic Fault Alarm System

By monitoring equipment operating status in real time, problems can be detected in advance and operators can be promptly notified to address them, preventing minor malfunctions from escalating into major shutdowns.

Characteristic

Gantry beam structure, strong stability.
Industrial control screen or touch screen operation, friendly interface.
Support remote upgrade and maintenance.
Sturdy aluminum honeycomb platform, good suction effect, ensure the flatness of the platform, and no deformation after long-term use.

Safety protection system: infrared light curtain, emergency stop button, etc. to ensure human and machine safety.
Flexible tool system, compatible with all series of tools.
Dust-proof treatment of the whole machine to reduce equipment failure rate and extend equipment service life.
Anti-static interference and soft start device to protect equipment safety and stability.
