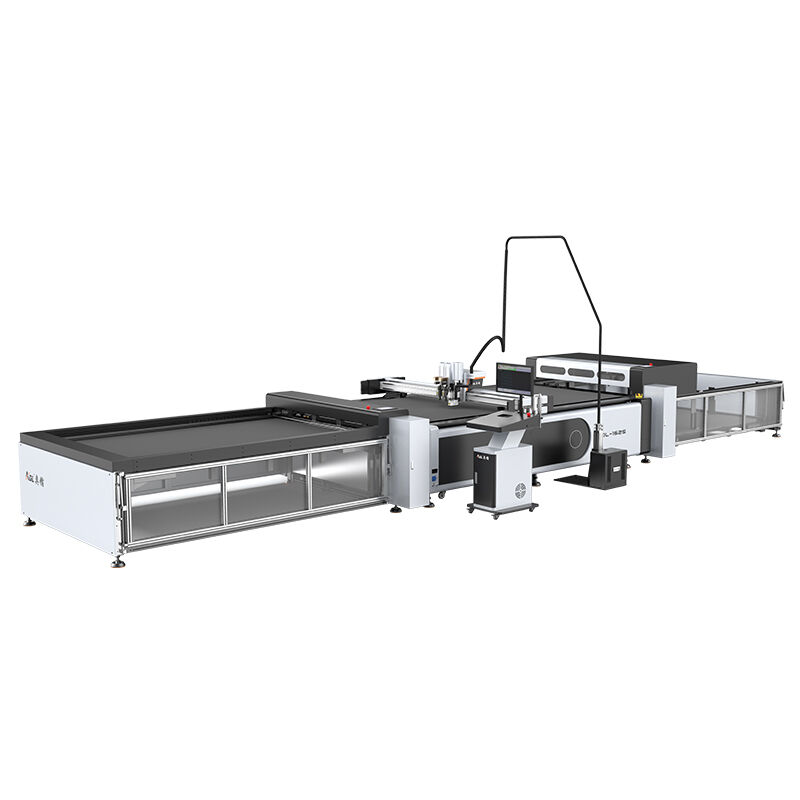

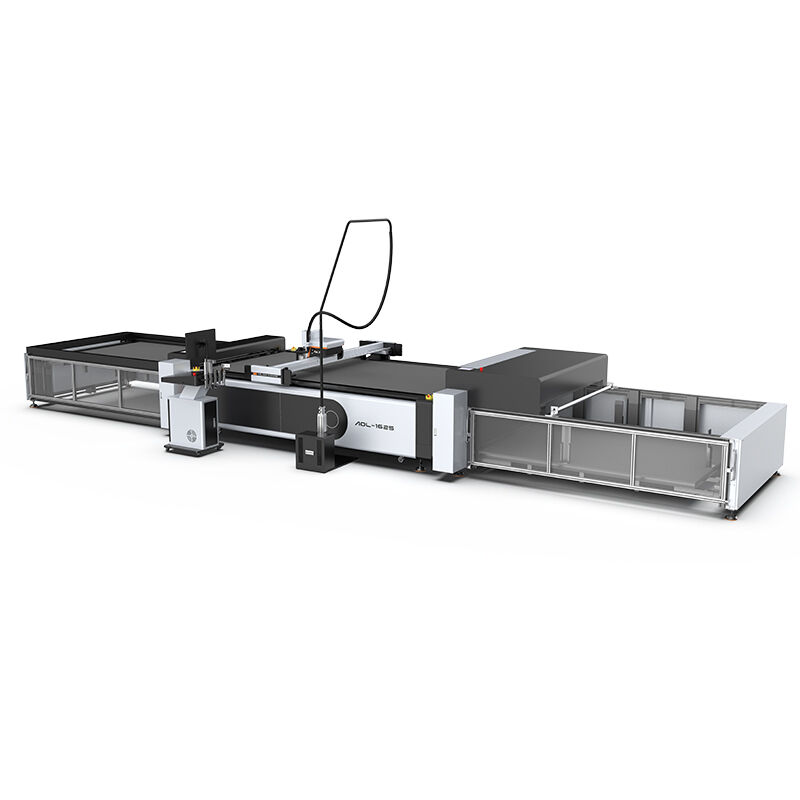

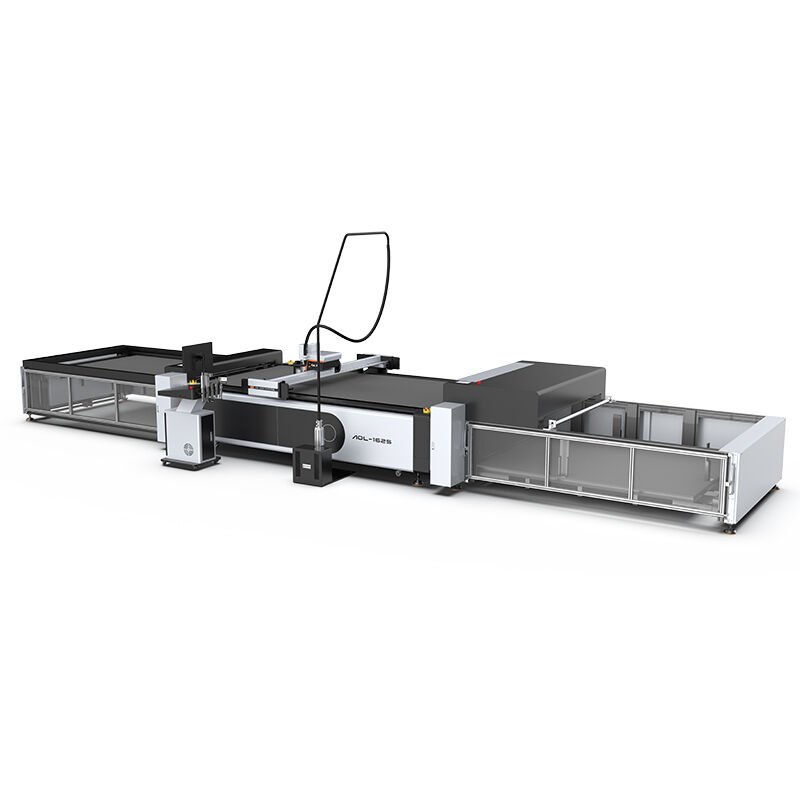

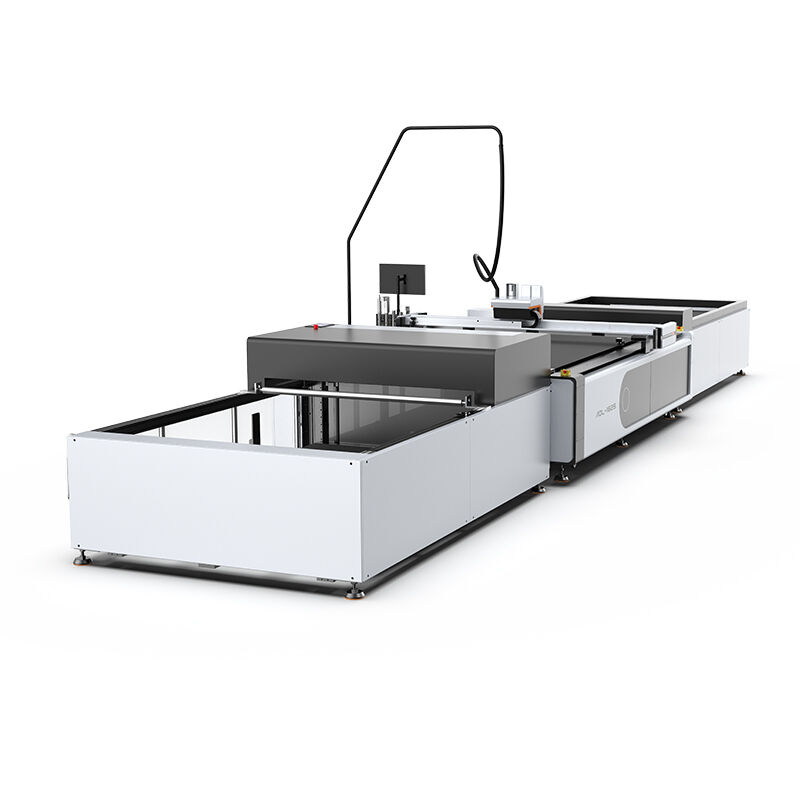

LC8-SXL

The LC8-SXL automatic loading CNC cutting machine is specially designed for the advertising and packaging industry, delivering high-precision cutting for large-format rigid sheet materials such as KT board, PVC board, corrugated board, honeycomb board, and composite panels.a

·High-performance motion control system ensures stable, high-speed CNC cutting with consistent precision

·Optimized for large-format advertising and packaging boards, ensuring efficient cutting of KT board, PVC board, corrugated sheets, honeycomb panels, and display materials.

·Intelligent conveyor system combined with vacuum adsorption enables smooth material feeding and precise fixation

·Advanced camera positioning and automatic recognition deliver accurate alignment and reduce cutting errors

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Model	AOL1625 auto loading and unloading system (Accept customization)
Cutting Thickness	≤50MM
Cutting Speed	0–1800MM/S
Rated Power	15KW
Rated Voltage	220/380V ±10%
Interface	Ethernet port
Control Panel	LCD touch screen
Cutting Tools	Tools can be easily changed, with oscillating knife tool, pneumatic knife tool, circular knife tool, kiss-cut tool, v-cut tool, creasing wheel, CCD Camera, and so on.
Cutting Materials	Paperboard, gray board, corrugated board, honeycomb board, KT board, foam board, car sticker, PP Adhesive material, EPE, EVA, PVC board, acrylic board, and so on.
Repeated accuracy	±0.05mm
Maximum loading height	700mm
Maximum feeding thickness	50mm
Single sheet loading weight	25kg
Max loading-unloading sheet size	1600 × 2500mm
Min loading-unloading sheet size	1600 × 2500mm
Max cutting size	1600 × 2500MM
Machine Size	10660mm × 2620mm × 1280mm Loading part size: 3300mm × 2360mm, Cutting part size: 3700mm × 2430mm, Unloading part size: 3300mm × 2360mm

Core Functions

Automatic Graphic Positioning

It enables automatic positioning and cutting of various materials, allowing for fast and precise cutting of various complex and irregularly shaped patterns.

Infrared Cutting Tool Positioning

The precise blade adjustment system is easy to operate and allows for accurate control of the blade depth, extending the lifespan of the felt.

Anti-Static System

The anti-static system of the whole machine to maximize the protection of personnel.

AOL Cutting Design Software

This powerful CAD editing and design software supports barcode reading, preventing operators from sending incorrect cutting files and improving work efficiency.

Characteristic

Gantry beam structure, strong stability.
Industrial control screen or touch screen operation, friendly interface.
Support remote upgrade and maintenance.
Sturdy aluminum honeycomb platform, good suction effect, ensure the flatness of the platform, and no deformation after long-term use.

Safety protection system: infrared light curtain, emergency stop button, etc. to ensure human and machine safety.
Flexible tool system, compatible with all series of tools.
Dust-proof treatment of the whole machine to reduce equipment failure rate and extend equipment service life.
Anti-static interference and soft start device to protect equipment safety and stability.

Related Cutting Tools

Electric Oscillating Tool

Driven Rotary Knife Tool

Pneumatic Knife Tool

Drag Knife Tool

Kiss-Cut Knife Tool

Adjustable Angle V-Cut Tool

High-Power Oscillating Knife Tool

Punching Tool

High-Power Milling Knife Tool

Marking Pen

CCD-Camera

Leveling Tool

Product Video

Cutting Case

Yogo Mat Cutting

Wool Rugs Cutting

Velvet Fabric Cutting

PU Leather Cutting

Irregular Shaped Rugs Cutting

EVA Mat Cutting

Cutting Checkered Fabric

Chenille Fabric Cutting

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
