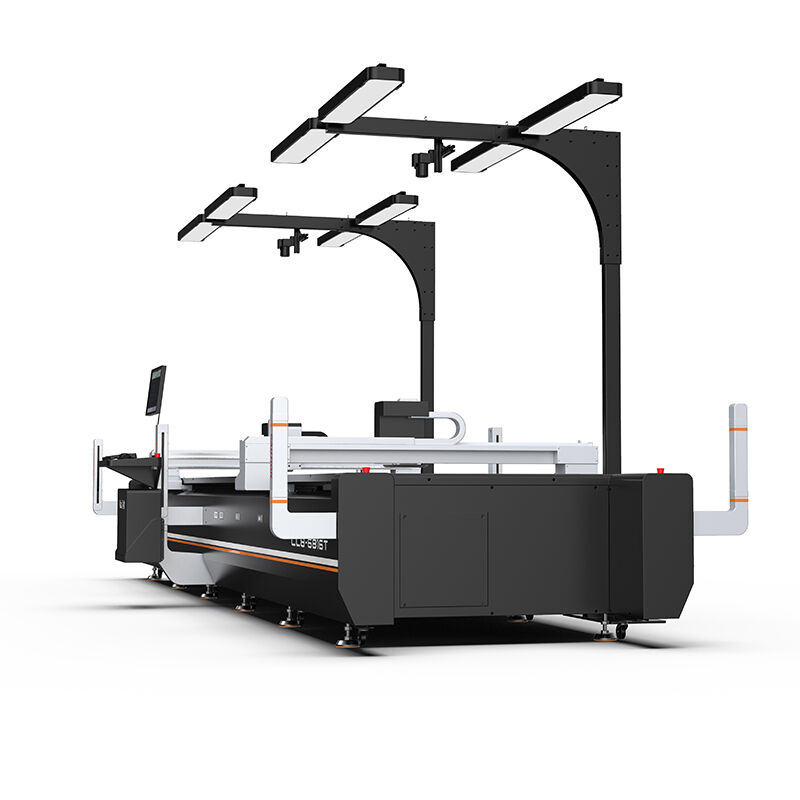

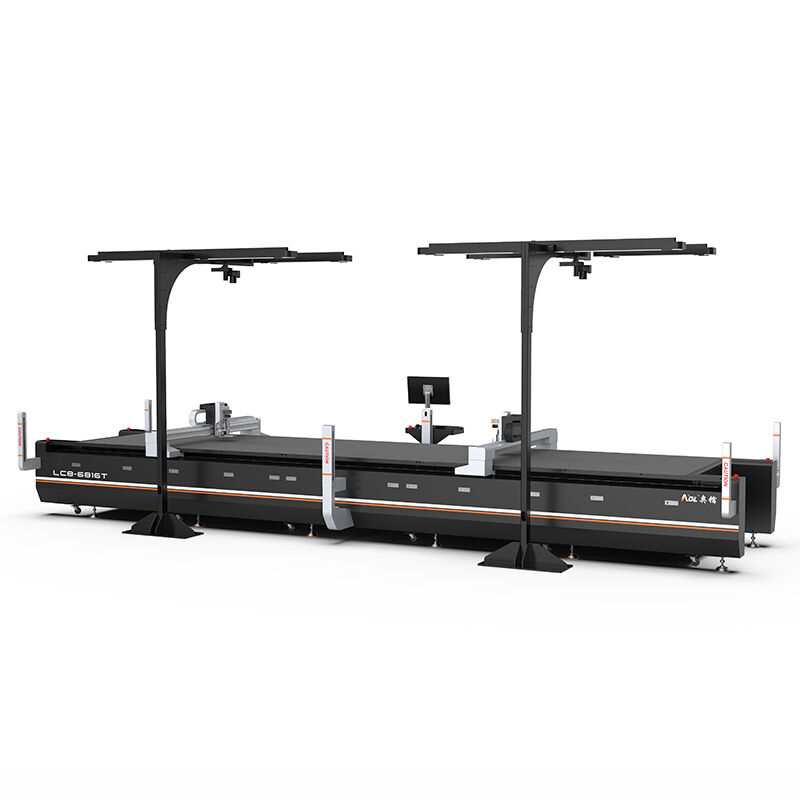

Customized equipment-6816T

The AOL-LC8-6816T intelligent leather CNC cutting machine is specially developed for the footwear and leather goods industry, delivering high-efficiency, large-format precision cutting for genuine leather and composite leather materials.

• Extra-large 6800 × 1600 mm working area designed for full-hide leather processing

• 48 independent vacuum adsorption zones for flexible material fixation

• Dual-beam and dual-tool holder structure to handle different leather thickness and softness

• AI intelligent nesting system automatically avoids defects and improves material yield

• High-precision scanning system for accurate contour and defect recognition

• AB dual-zone alternating cutting mode for continuous production

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	2836mm × 7840mm × 1350mm
Working Range	6800mm × 1600mm
Vacuum pump power	12.5KW
Rated Power	17KW
Weight	1500KG
Safety Device	Using infrared sensors, responsive, safe and reliable.
File Form	PLT / DXF / CAD / PDF / JPG / TIF
Cutting Speed	200–1500mm/s (depending on material density)
Cutting Thickness	≤50mm (According to different materials)
Repeated Accuracy	≤0.1mm
Transmission System	Imported servo motors, imported linear guides, and ground gears and racks
System	AOL
Rated voltage	380V ±10%
Cutting Tools	Oscillating knife, Pneumatic knife, Punching, etc.
Cutting material	Leather, fur
Interface	Enternet port
Material fixed way	Tracking Adsorption
Adsorption partitions	48 partitions

Core Functions

Superior Layout Software

Superior layout software, increasing material utilization by over 10%.

Intelligent Recognition Technology

Effectively identify leather defects, increase production, reduce waste, and improve the efficient utilization of materials.

Infrared Safety Device

The infrared sensor safety device ensures the safety of the operator during high-speed machine operation and prevents the loss of cutting materials.

Honeycomb Countertop

The sturdy aluminum honeycomb platform provides excellent suction and ensures the platform remains flat and does not deform even after prolonged use.

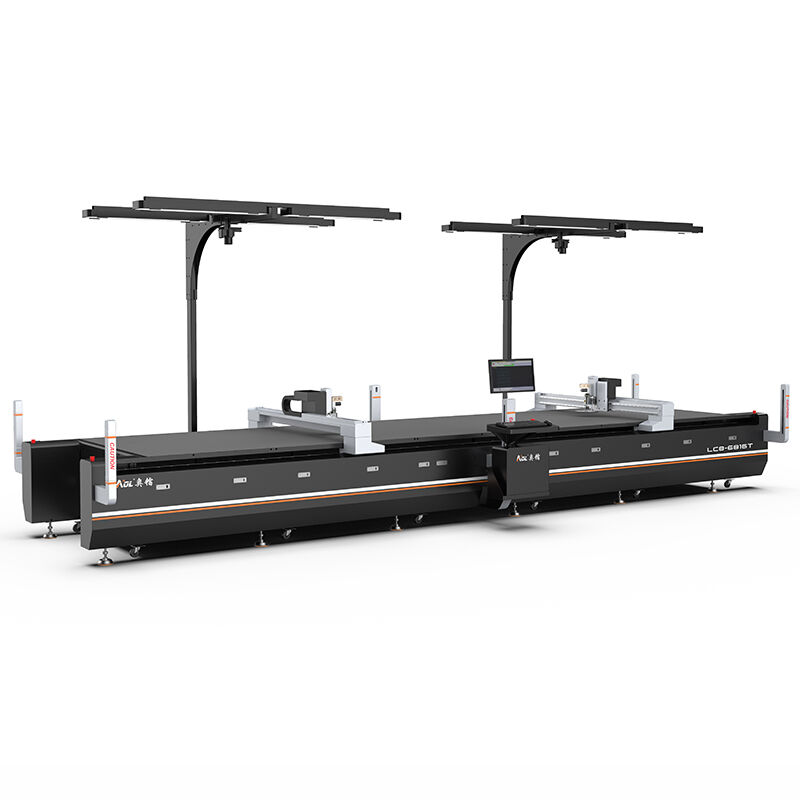

Characteristic

Processing Extra-Large and Extra-Wide Materials : Customized large-size specifications enable the machine to process extra-large sheets, long rolls, and wide industrial materials without manual cutting, thus improving workflow continuity and reducing secondary handling.
Increased Efficiency in Mass Production : A larger work area allows for nesting and cutting more parts in a single cycle, significantly increasing throughput. This is particularly beneficial for industries such as furniture manufacturing, automotive interiors, packaging, composites, and insulation.
Reduced Material Handling and Increased Efficiency : The extra-large worktable minimizes the need for multiple material repositionings, reducing labor intensity, setup time, and the risk of alignment errors. This helps to speed up production and improve consistency.
Enhanced Flexibility for Complex and Long Designs : The extended cutting space supports long products such as carpets, curtains, mattress foam blocks, billboards, carbon fiber sheets, and aircraft interior materials, providing flexibility unavailable with standard-sized machines.
Tailor-made for Specific Industrial Needs : This machine tool can be customized to meet the unique needs of a factory, including custom length, width, tool configuration, conveyor system, material feeding scheme, and safety features, ensuring optimal performance in specialized applications.

Enhanced Structural Stability for Large-Scale Operations : The customized large-scale CNC machine tool features a reinforced frame, heavy-duty gantry, and high-load motion system to maintain stability and precision over large-area cutting areas, ensuring long-term reliability.
Intelligent Nesting for Improved Material Utilization : The expanded workspace, combined with advanced nesting software, enables more efficient pattern layout, reducing waste and lowering material costs for large-format manufacturing.
Seamless Integration with Automated Production Lines : The large machine tool can be integrated with automated feeding and unloading systems.
Multi-Tool and Multi-Process Cutting Capabilities:Despite its large size, this machine supports various processing methods such as oscillating cutter, drag cutter, V-cut, half-cut, indentation, punching, milling, and camera recognition, enabling diverse processing on a single machine.
Suitable for high-volume, long-shift, and batch production : With higher capacity and less downtime, this system is ideal for continuous 24/7 operation and is the perfect choice for factories requiring high output and consistent quality.

Related Cutting Tools

Electric Oscillating Tool

Pneumatic Knife Too

Driven Rotary Knife Tool

Large Format Digital Camera

Marking Pen

CCD-Camera

Leveling Tool

Product Video

Cutting Case

Fur Leather Cutting Sample

Genuine Sheepskin Cutting

Granular Fleece Cutting

Leather Car Seat Cutting

Leather Cut Pieces

PVC Leather Car Seat Covers Cutting

Sheepskin Shoes Cut Piece

Sheepskin Shoes Cut Pieces

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
