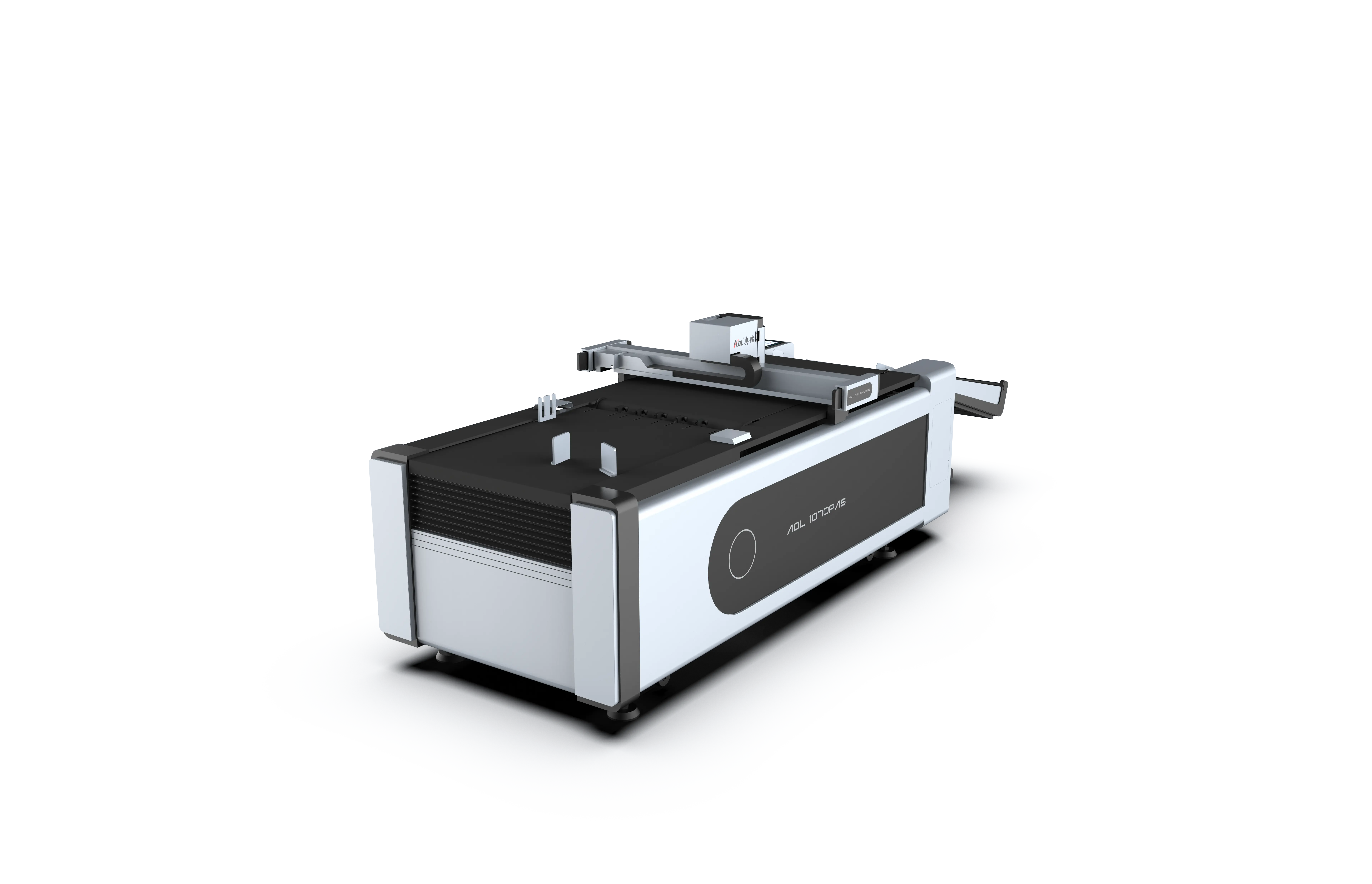

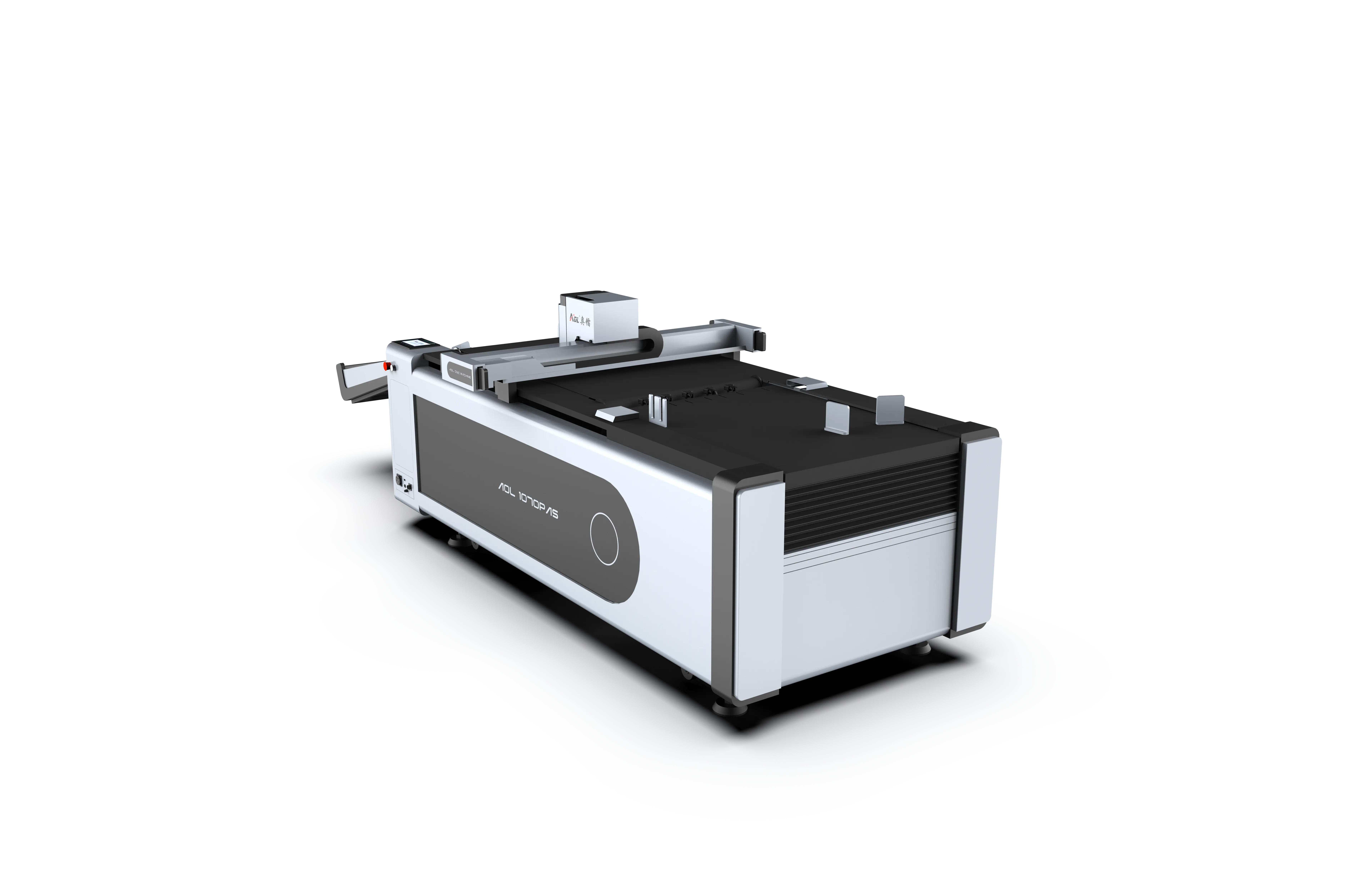

Cutting Plotter-1070PAS

The AOL-1070PAS CCD digital cutting plotter is a high-precision contour cutting solution designed for printing, labeling, and creative production industries.

·High-precision CNC cutting combined with CCD image recognition for accurate contour cutting

·Automatic registration improves pattern alignment and cutting repeatability

·Increases efficiency and accuracy compared with traditional manual cutting machines

·Cost-effective digital cutting plotter designed for creative and short-run production

·Ideal for advertising, printing, labeling, decoration, and packaging sample making

Parameter
Core Functions
Characteristic
Related Cutting Tools
Product Video
Cutting Case
Inquiry

Parameter

Product Size	2540mm × 1100mm × 1100mm
Working Range	1000mm × 700mm
Vacuum pump power	2.2KW
Weight	600KG
Safety Device	Four corners emergency stop, anti-collision safety device using infrared induction, safe and reliable.
File Form	PDF / PLT / DXF / HP-GL
Cutting Speed	0–1200mm/s (depending on material density)
Translational Velocity	0–1800mm/s
Cutting Thickness	≤6mm (according to different materials)
Repeated Accuracy	≤0.1mm
Rated Voltage	220V ±10%
Tool Configuration	Multiple cutting knives
Multifunctional Head	Oscillating knife, drag knife, creasing wheel, marking pen, CCD camera
Cutting Material	PVC board, PP board, white card paper, cardboard, paper, PVC, film, sticker, etc. Max cutting depth up to 6mm depending on material density.
Instruction System	HP-GL compatible format
Material Fixed Way	Tracking Adsorption
Adsorption Partitions	3 partitions

Core Functions

Automatic Graphic Positioning

It enables automatic positioning and cutting of various materials, allowing for fast and precise cutting of various complex and irregularly shaped patterns.

AOL Cutting Design Software

This powerful CAD editing and design software supports barcode reading, preventing operators from sending incorrect cutting files and improving work efficiency.

Multiple Cutting Tools

One machine can be equipped with multiple cutting tools, enabling multi-purpose use and meeting the diverse cutting needs of different materials.

Vacuum Adsorption

Powerful airflow and strong suction, with adjustable vacuum suction area size, significantly reducing power consumption.

Characteristic

CCD Sensor Automatic Positioning : The camera automatically inspects edges and performs high-speed cutting.

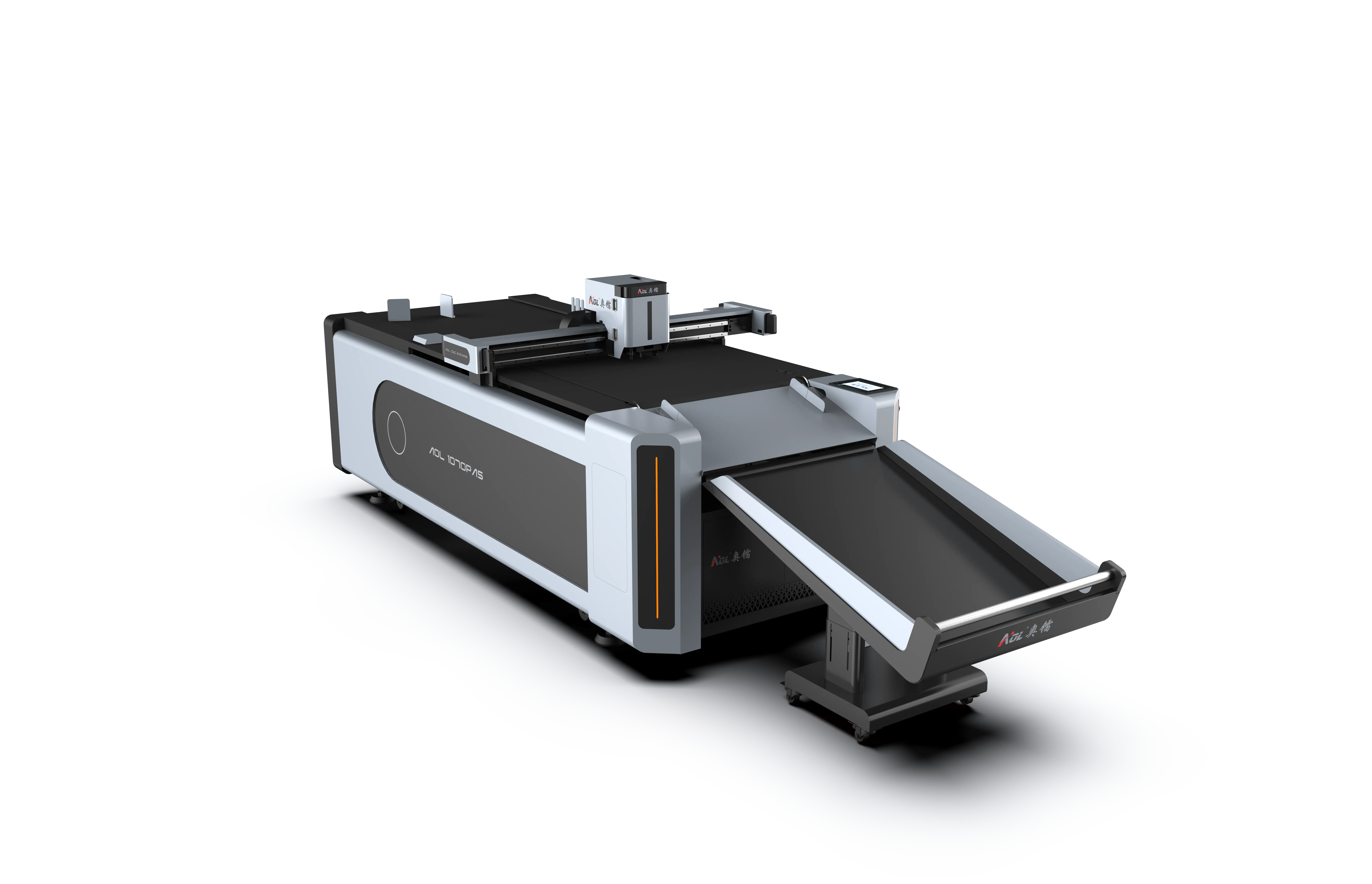

Automatic Paper Feeding System : Pneumatic automatic paper feeding system, capable of stacking up to 600 sheets of paper, scanning speed 5-10 seconds; paper feeding speed up to 12 sheets/minute.

Aviation-grade Aluminum Alloy Vacuum Adsorption Platform : Robust and durable, heat-insulated and corrosion-resistant, with a wider range of applications.
Self-developed CAM Software : Digital software is used to compensate for and optimize the path to improve production efficiency.

Related Cutting Tools

Oscillating Tool for 1070PAS

Drag Knife Tool

Creasing Tool

V-cut Tool-1070

Kiss-cut Tool

Marking Pen for Plotter

CCD-Camera

Product Video

Cutting Case

4mm Foam Board

Cardboard Box Sample

Colored PVC Film Sheet

Corrugated Board

Custom Shape Business Card

Flexible Plastic Film

Gray Board Paperboard

Premium Pop Up 3D Cards

FAQ

All Products

What tool variety does your machine offer?

Many machines are equipped with interchangeable blades to suit different materials and effects. For example, you can look for rotary blades to cut thicker cardboard, half-cut blades to cut fragile materials, and even engraving blades to add fine details.

Can Cut Intricate Designs With Automatic CNC Knife Cutting Machine?

Yes, our CNC cutting machines can perform extremely precise cuts (positioning tolerance of ±0.5mm). They are ideal for applications in the aerospace and pharmaceutical industries where precision is paramount.

What materials can this digital cutting machine cut?

·Foam and EVA foam
·Leather and synthetic leather
·Textile and fabric
·Rubber and gasket materials
·Composite materials

Does the machine support custom size or configuration?

·Working area customization available
·Tool configuration optional
·Conveyor table optional
·Vision system optional
·OEM branding supported

What is the maximum cutting thickness?

Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.

What other tools are available besides the cutting blade?

Yes, we also offer punch tool for circle and V shape punching, at diamter 3-5mm and marking pen.

What industries is this CNC cutting machine suitable for?

·Packaging industry
·Automotive interiors
·Advertising and display
·Furniture and upholstery
·Textile and apparel
·Footwear manufacturing

What are the main advantages of this automatic cutting machine?

·High precision digital cutting
·No mold required (save cost)
·Fast production speed
·Stable continuous operation
·Suitable for small batch customization
